IP65 floodlight JNFLM12-100S-5000-A2-DIM
LEDfor sports fieldsindustrial

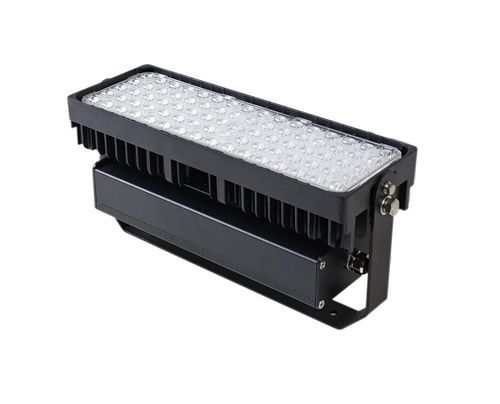

IP65 floodlight - JNFLM12-100S-5000-A2-DIM - JNLED - LED / for sports fields / industrial
IP65 floodlight - JNFLM12-100S-5000-A2-DIM - JNLED - LED / for sports fields / industrial
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
for sports fields, industrial
Interior/exterior use
outdoor
Type
surface-mounted
Shape
square
Beam type
spot
Dimmable
dimmable
Other characteristics
adjustable, IK08, high-efficiency, energy-saving
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 106 W
(0.14 hp)

Min.: 106 W
(0.14 hp)

Luminous flux

Max.: 13,000 lm

Min.: 13,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Overview

A modular cool-white LED floodlight designed for outdoor and industrial applications. The product integrates a single LED module configuration (1×2), Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s) to provide high-efficiency, dimmable lighting that replaces traditional HID sources.

Applications

  • Outdoor area and perimeter lighting
  • Industrial yards and loading areas
  • Facade and architectural accent lighting
  • Sports and recreational facilities with focused beam requirements


Key features

  • Product SKU: JNFLM12-100S-5000-A2-DIM
  • Rated power: 100 W (system power 106 W)
  • Total luminous flux: 13,000 lm
  • Colour temperature: 6000 K (cool white)
  • Colour rendering index (CRI): >80
  • Beam angle (square): 30×30°
  • Dimming capability: dimmable
  • LED type: Philips Lumileds (Luxeon TX)
  • LED driver: Meanwell
  • Power factor: >0.95
  • Impact protection: IK08
  • Ingress protection: IP65
  • Housing material: die-cast aluminum, colour: black
  • Number of LED modules: 1 module (configuration 1×2)
  • Mounting: adjustable bracket
  • Lifespan: 50,000 hours
  • Warranty: 5 years


Electrical & environmental

  • Input voltage: 100–277 V
  • Input frequency: 50/60 Hz
  • System power: 106 W
  • Working temperature: -20°C to 45°C
  • Working humidity: 10%–90% RH


Dimensions & packaging

  • Fixture dimensions (L×W×H): 326 × 128 × 113 mm
  • Fixture weight (net): 6 kg
  • Export carton dimensions (mm): 400 × 360 × 230
  • Products per carton: 1
  • Export carton gross weight: 8 kg


Ordering information

  • Order reference: JNFLM12-100S-5000-A2-DIM
  • Contact supplier for alternative modules, beam angles or mounting accessories
