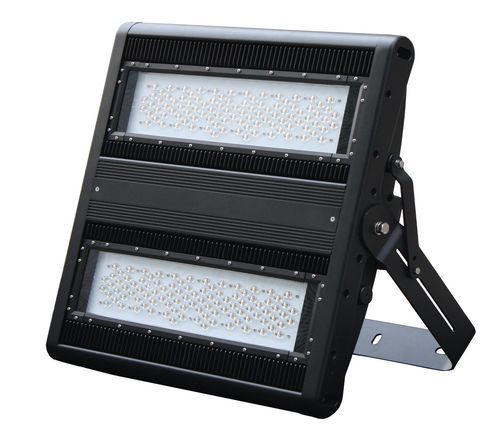

IP65 floodlight JNFL25-1800S-5000-A6-ND

LEDindustrialoutdoor

Short description
1800 W LED flood light with Philips Lumileds LEDs and Meanwell driver HLG-1000H. Non-dimmable, IP65 rated for outdoor industrial use. Replaces 2500 W metal halide/HID/HPS luminaires and delivers 211,000 total lumens at 5000 K (cool white). Robust adjustable bracket for targeted area lighting.

Product Specifications
Product SKU: JNFL25-1800S-5000-A6-ND
System Power: 1800 W
Power Consumption: 1700 W
Input Voltage: 100-305 V
Beam Angle (°): 85°
Beam Angle Square: 85x135°
IP Rating: IP65
IK Impact Rating: IK07
Color Rendering Index: >70
Color Temperature (K): 5000 K
LED Type: Philips Lumileds
Total Lumens Output: 211000 lm
LED Driver Brand: Meanwell HLG-1000H
Dimming Capability: Non-dimmable
Power Factor: >0.95
Number of LED Modules: 1 module
Fixture Dimensions (H×L×W): 161 mm × 788 mm × 665 mm
Product Weight: 42 kg
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours
Warranty Period (Years): 5
Mounting Type: Adjustable Bracket

Packaging & Shipping
Net Weight (kg): 42 kg
Export Carton Dimensions (mm): 950x880x270
Products per Carton: 1
Export Carton Gross Weight (kg): 41 kg
Fixture Height (mm): 161
Fixture Width (mm): 665
Fixture Length (mm): 788

Technical features / specifications

• Product SKU: JNFL25-1800S-5000-A6-ND
• System Power: 1800 W
• Power Consumption: 1700 W
• Input Voltage: 100-305 V
• Total Lumens Output: 211000 lm
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Colour Temperature: 5000 K (cool white)
• CRI: >70
• Beam Angle: 85x135° (85° / 135°)
• IP Rating: IP65
• IK Rating: IK07
• Dimming: Non-dimmable
• Power Factor: >0.95
• Number of LED Modules: 1
• Fixture Dimensions (H×L×W): 161 mm × 788 mm × 665 mm
• Product Weight / Net Weight: 42 kg
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
• Mounting Type: Adjustable Bracket
