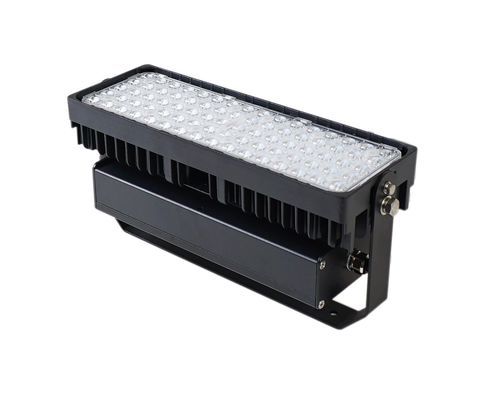

IP65 floodlight JNFLM12-100S-6500-A2-DIM

LEDcommercialoutdoor

Modular 100W LED flood light designed for outdoor lighting applications. IP65-rated and dimmable, it integrates Philips Lumileds (Luxeon TX) LEDs with Meanwell drivers and is suitable as a replacement for 250W metal halide/HID/HPS luminaires.

Key features

• Modular 1×2 configuration with one LED module (Philips Lumileds, Luxeon TX).
• Dimmable via integrated Meanwell LED driver(s) for controllable light output.
• Square beam optics 30×30° for precise, narrow-beam illumination.
• IP65 ingress protection and IK08 impact rating for outdoor and industrial installations.
• High lumen output: 13,000 lm; cool white 6000K; CRI >80.
• Die-cast aluminium housing in black with adjustable bracket mount for versatile aiming.

Technical specifications

• Product SKU: JNFLM12-100S-6500-A2-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• Beam Angle (square): 30×30°
• Total Lumens Output: 13,000 lm
• Colour Temperature (CCT): 6000 K
• Color Rendering Index (CRI): >80
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Dimming Capability: Dimmable
• Power Factor: >0.95
• IP Rating: IP65
• IK Impact Rating: IK08
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting Type: Adjustable Bracket Mount
• Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
• Fixture Weight (Net): 6 kg
• Export Carton Dimensions (mm): 400 × 360 × 230
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years

Applications

• Outdoor area and perimeter lighting, industrial yards, façades, signage and general floodlighting where narrow, precise beams are required.

Packaging & warranty

• Supplied with adjustable bracket; packed 1 unit per export carton (400×360×230 mm). Gross weight per carton: 8 kg. Rated for -20°C to 45°C operation. Lifetime 50,000 hours with 5-year warranty.
