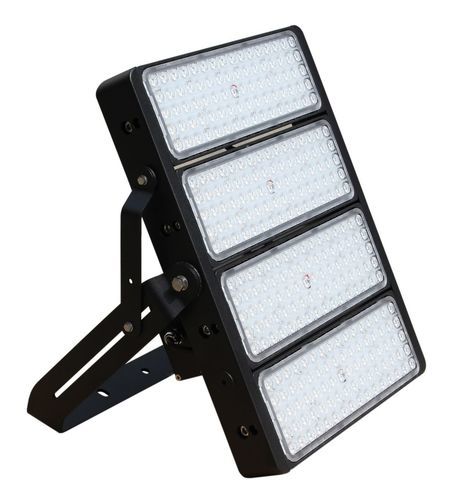

IP65 floodlight NFLM20-600S-6500-A5-ND

LEDindustrialfor stadium

Product overview
600 W modular LED flood light, configuration 2×4 modules, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Color temperature 6000K (cool white). IP65, IK08. This model is non-dimmable. SKU: JNFLM20-600S-6500-A5-ND.

Key features

• Configuration: 2×4 modules
• LED type: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Power: 600 W (system power 606 W)
• Total luminous flux: 78,000 lm
• Beam angle: 30×100°
• Color temperature: 6000K (cool white)
• IP rating: IP65; IK rating: IK08
• Power factor >0.95; CRI >80
• Designed to replace 1000 W metal halide/HID/HPS installations
• Non-dimmable (this model)

Technical specifications

• SKU: JNFLM20-600S-6500-A5-ND
• Power consumption: 600 W
• System power: 606 W
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• Beam angle: 30×100°
• IP rating: IP65
• IK impact rating: IK08
• CRI: >80
• Color temperature: 6000 K
• LED type: Philips Lumileds (Luxeon TX)
• Total lumen output: 78,000 lm
• Power factor: >0.95
• Driver brand: Meanwell
• Configuration: 2×4 modules
• Housing: die-cast aluminum, black
• Dimensions (L×W×H): 326×128×113 mm
• Weight (net): 17.2 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Warranty: 5 years
• Lifespan: 50,000 hours

Applications

• Outdoor area and site lighting
• Sports arenas and stadium façades
• Industrial yards, warehouses and logistics areas
• Ports, container terminals and storage yards
• Architectural façade and accent lighting

Compliance & warranty

• Ingress protection IP65 and impact rating IK08
• Warranty period: 5 years
• Technical documentation and certification details available on request
