IP65 floodlight JNFLM18/6-400S-5000-A4-DIM

LEDoutdoorsurface-mounted

Short description

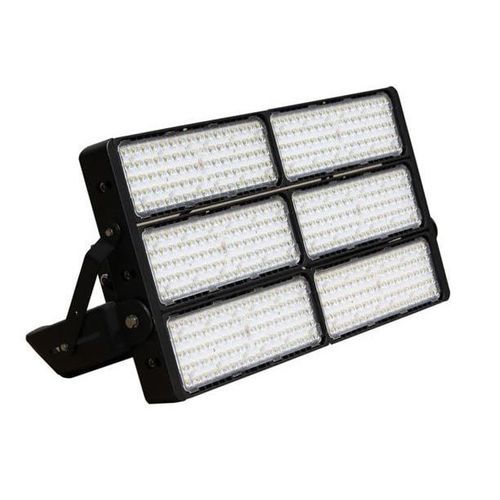

400W modular LED flood light in 1×6 module configuration with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, square beam 90×90°, IP65; suitable to replace 1000W metal halide/HID/HPS units.

Features

• Modular configuration: 1×6 modules
• Original Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Dimmable (adjustable light output)
• IP65 rated for outdoor use
• Square beam angle: 90×90°
• Replaces 1000 W metal halide / HID / HPS

Specification Details
Product SKU: JNFLM18/6-400S-5000-A4-DIM
Power Consumption: 400 W
Input Voltage: 100-277V
Beam Angle (°): 90x90°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52000
Color Temperature (K): 6000
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 406 W
Number of LED Modules: 1 modules
Beam Angle Square: 90x90°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326x128x113mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400x360x230
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg
Fixture Height (mm): 113
Fixture Width (mm): 128
Fixture Length (mm): 326

Technical specifications

• Model / Series: JNFLM18 series
• Power consumption: 400 W (system power 406 W)
• Luminous output: 52,000 lm
• LED type: Philips Lumileds (Luxeon TX)
• Color temperature: 6000 K (cool white)
• CRI: >80
• Beam angle: 90×90° (square)
• IP rating: IP65
• IK rating: IK08
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• Power factor: >0.95
• Driver: Meanwell driver(s)
• Housing: Die-cast aluminum, black
• Mounting: Adjustable bracket mount
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
• Dimensions (L×W×H): 326×128×113 mm
• Weight: 17.2 kg
