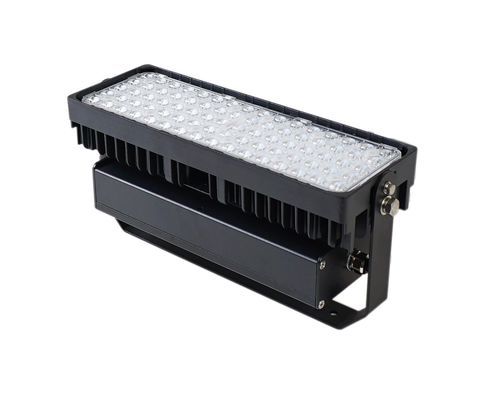

IP65 floodlight JNFLM12-100S-5000-A8-DIM

LEDcommercialfor parking lot

Overview

Compact 100 W modular LED flood light in a 1×2 module configuration delivering 13,000 lm of cool white light (6000 K). Equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65 and IK08 rated for outdoor industrial use; suitable as a direct replacement for 150–175 W metal halide / HID / HPS fixtures.

Typical applications

• Industrial and commercial yard lighting
• Façade and signage illumination
• Warehouse exterior and loading areas
• Sports courts and small stadiums
• Ports and logistics terminals

Technical specifications

• Product SKU: JNFLM12-100S-5000-A8-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100–277 V
• Input Frequency: 50/60 Hz
• Beam Angle (square): 140×140°
• Total Lumens Output: 13000 lm
• Colour Temperature: 6000 K
• Color Rendering Index (CRI): >80
• Dimming Capability: Dimmable
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Power Factor: >0.95
• IP Rating: IP65
• IK Impact Rating: IK08
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Operating / Environmental Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Fixture Height: 113 mm
• Fixture Length: 326 mm
• Fixture Width: 128 mm
• Product Weight (net): 6 kg

Packaging & warranty

• Packaging - Product Dimensions (mm): 326 × 128 × 113 mm
• Packaging - Export Carton Dimensions (mm): 400 × 360 × 230 mm
• Packaging - Products per Carton: 1
• Packaging - Export Carton Gross Weight: 8 kg
• Warranty Period: 5 years

Ordering & support

Available with standard Meanwell drivers; contact supplier for dimming options, mounting accessories, certifications and OEM configurations.
