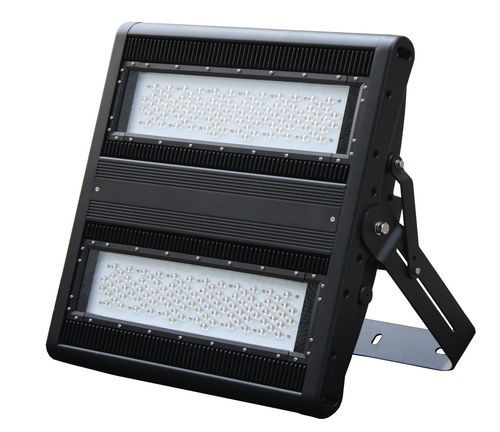

IP65 floodlight JNFL25-1800S-4500-A5-ND

LEDindustrialoutdoor

Short description
1800 W LED flood light with Philips Lumileds and Meanwell HLG-1000H driver. Non-dimmable. IP65. Designed to replace 2500 W metal halide/HID/HPS fixtures in industrial and outdoor installations.

Product specifications
Product SKU: JNFL25-1800S-4500-A5-ND
Power Consumption: 1700 W
Input Voltage: 100-305 V
Beam Angle (°): 60°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 211000 lm
Color Temperature (K): 4500 K
IK Impact Rating: IK07
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5 years
System Power: 1800 W
Number of LED Modules: 1 module
Beam Angle Square: 60x135°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket
Fixture Height (mm): 161 mm
Fixture Length (mm): 788 mm
Fixture Width (mm): 665 mm
Product Weight: 42 kg
LED Driver Brand: Meanwell HLG-1000H
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Net Weight (kg): 42 kg
Export Carton Dimensions (mm): 950 x 880 x 270 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 41 kg
Fixture Height (mm): 161 mm
Fixture Width (mm): 665 mm
Fixture Length (mm): 788 mm

Technical specifications

• Product SKU: JNFL25-1800S-4500-A5-ND
• System Power: 1800 W
• Power Consumption: 1700 W
• Input Voltage: 100-305 V
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Lumens: 211000 lm
• Colour Temperature: 4500 K (natural white)
• CRI: >70
• Beam Angle: 60° (60x135° square)
• IP Rating: IP65
• IK Rating: IK07
• Dimming: Non-dimmable
• Power Factor: >0.95
• Housing Colour: Black
• Mounting: Adjustable Bracket
• Dimensions (H x L x W): 161 mm x 788 mm x 665 mm
• Weight: 42 kg
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
