IP67 floodlight JNFL-ATEX-FSERIES1
explosion-proofATEXLED

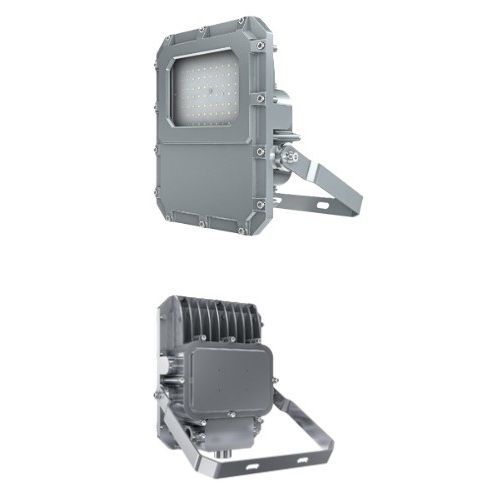

IP67 floodlight - JNFL-ATEX-FSERIES1 - JNLED - explosion-proof / ATEX / LED
IP67 floodlight - JNFL-ATEX-FSERIES1 - JNLED - explosion-proof / ATEX / LED
IP67 floodlight - JNFL-ATEX-FSERIES1 - JNLED - explosion-proof / ATEX / LED - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP67, explosion-proof, ATEX
Light source
LED
Application
commercial, home, industrial
Interior/exterior use
for public space, for facade, patio
Type
surface-mounted, pole-mounted, recessed wall, recessed ceiling, recessed floor
Shape
rectangular, square
Other characteristics
IK09, IK07
Height

98 mm
(4 in)

Length

318 mm
(13 in)

Width

270 mm
(11 in)

Power

100 W

Luminous flux

13,000 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

70 unit

Description

Overview

Explosion-proof LED luminaire certified for gas and dust hazardous locations. Suitable for installation in Zone 1 & 2 (gas group IIC) with temperature class T6 and rated IP67. Nominal service life: 80,000 hours; warranty period: 5 years.

Key technical specifications

  • Product SKU: JNFL-ATEX-FSeries1 (100W)
  • Power consumption: 100 W
  • Input voltage: AC 120–277 V, 50/60 Hz; DC 36 V
  • Light colour (CCT): 2200 K–7000 K
  • LED type: Philips LUMILEDs 3030 or 5050
  • Total luminous flux: 13,000 lm
  • Luminous efficacy: 140 lm/W
  • Power factor: > 0.95
  • CRI: > 70
  • Beam angles: 40°, 60°, 90°, 120°
  • Dimming: 0–10 V (optional)
  • IK impact rating: IK07 (without wire guard); IK09 (with wire guard)
  • Housing colour: Grey
  • Housing material: Copper-free aluminium, tempered glass
  • Fixture shape: Rectangular
  • Fixture dimensions (H×W×L): 98 mm × 270 mm × 318 mm
  • Packaging dimensions: 98.5 × 270 × 318 mm
  • Net weight: 8.5 kg
  • Export carton dimensions: 386 × 330 × 220 mm
  • Products per carton: 1
  • Export carton gross weight: 10 kg
  • Working temperature range: -20 °C to +45 °C
  • Working humidity range: 10–95 % RH
  • Lifespan: 80,000 hours
  • Warranty period: 5 years
  • IP rating: IP67
  • Temperature class: T6
  • Gas group: IIC
  • Protection type: Ex eb mb
  • Zone classification: Zone 1 & 2


Certifications & compliance

  • ATEX: Gas: II 2 G Ex db IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°...120°C Db; Flame-proof and increased safety: II 2 G Ex db eb IIB T6...T4 Gb; II 2 D Ex tb IIIC T80°C...120°C Db IP66
  • IECEx: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db; Ex ec IIC T6...T3 Gc; Ex tb IIIC T85℃...T103℃ Db
  • UL: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
  • Retilap: Esquema 5 RETILAP


Installation & environmental notes

  • Suitable for fixed industrial installations in hazardous areas (gas and dust).
  • Optional wire guard increases impact resistance to IK09.
  • Compatible with 0–10 V dimming controllers when specified.
  • Ensure installation by qualified personnel according to local explosion-protection regulations.


Ordering and variants

  • Available beam angles: 40°, 60°, 90°, 120°
  • CCT range configurable between 2200 K and 7000 K
  • LED options: Philips LUMILEDs 3030 or 5050
  • Packaging: 1 unit per export carton
  • Warranty: 5 years
