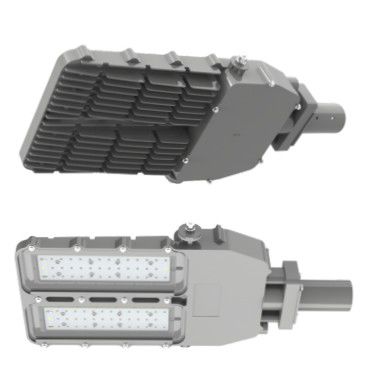

Urban lamp post JN ATEX STREETLIGHT SERIES 2

contemporarystainless steelLED

Short description
With stainless steel fasteners

Features

• Power consumption: 200 W
• Total lumens output: 28,000 lm
• Luminous efficacy: 130 lm/W
• Beam angles available: 40°, 60°, 90°, 120°
• Light color: 2700K–6500K (adjustable options)
• LED type: SMD
• Input voltage: AC120-277V, 50/60Hz
• Power factor: >0.95
• Dimming capability: 0-10V available (optional)
• IP rating: IP67
• IK impact rating: IK07 (without wire guard) / IK09 (with wire guard)
• Housing material: ADC12 Aluminium
• Housing colour: Grey
• Fixture shape: Rectangular
• Fixture dimensions: Height 74 mm / Width 270 mm / Length 415 mm
• Net weight: 7.5 kg
• Temperature class: T6
• Working temperature range: -20°C to +45°C
• Working humidity range: 10-95% RH
• Lifespan: 80,000 hours
• Warranty period: 5 years

Packaging & Shipping
Product Dimensions (mm): 74.5×270×415mm
Net Weight (kg): 7.5 kg
Export Carton Dimensions (mm): 820x260x190
Products per Carton: 1
Export Carton Gross Weight (kg): 7.5 kg

Standards & Certifications

• ATEX: ZONE 1 II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 II 3G Ex ec mb IIC T6...T4 Gc II 2D Ex tb IIIC T80°C...T125°C
• IECEx: ZONE 1 Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 Ex ec mb IIC T6...T4 Gc Ex tb IIIC T80°C...T125°C
• UL: Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II Division 2, Groups F, G, Class III
• RETILAP: Esquema 5 RETILAP
• Other standards: UL1598, UL1598A, UL924, ETL, ABS

Technical specifications

• Product SKU: JN-ATEX-StreetlightSeries2 (200W)
• Power Consumption: 200 W
• Input Voltage: AC120-277V, 50/60Hz
• Input Frequency: 50/60Hz
• Light Color: 2700K-6500K
• LED Type: SMD
• Total Lumens Output: 28,000 lm
• Luminous Efficacy (lm/W): 130
• Power Factor: >0.95
• IK Impact Rating: IK07 (without wire guard)
• Housing Colour: Grey
• Housing Material: ADC12 Aluminium
• Warranty Period (Years): 5
• IP Rating: IP67
• Color Rendering Index: >70
• Beam Angle (°): 40°, 60°, 90°, 120°
• Dimming Capability: 0-10V available (optional)
• ATEX Standard: ZONE 1 II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 II 3G Ex ec mb IIC T6...T4 Gc II 2D Ex tb IIIC T80°C...T125°C
• IECEx Standard: ZONE 1 Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 Ex ec mb IIC T6...T4 Gc Ex tb IIIC T80°C...T125°C
• UL Standard: Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II Division 2, Groups F, G, Class III
• Retilap Standard: Esquema 5 RETILAP
• Other Standards: UL1598, UL1598A, UL924, ETL, ABS
• Fixture Shape: Rectangular
• Fixture Height (mm): 74 mm
• Fixture Width (mm): 270 mm
• Fixture Length (mm): 415 mm
• Net Weight (kg): 7.5 kg
• Temperature Class: T6
• Gas Group: IIC
• Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2
• IK Rating with Wire Guard: IK09 (with wire guard)
• Working Temperature Range: -20°C to +45°C
• Working Humidity Range: 10-95% RH
• Lifespan (Hours): 80,000 hours
