Hanging light fixture JN-HB-ATEX-BSERIES1
surface-mountedpole-mountedLED

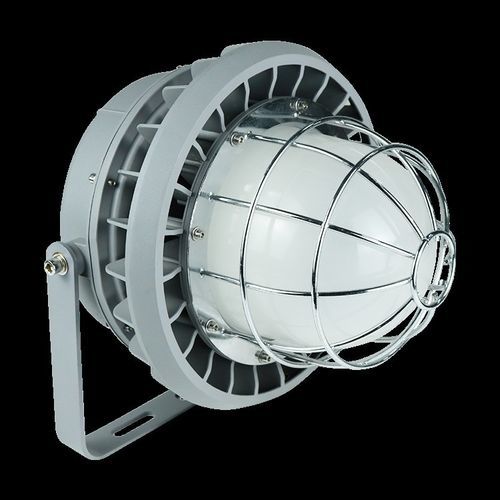

Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 2
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 3
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 4
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 5
Add to favorites
Compare this product

Characteristics

Type
hanging, surface-mounted, pole-mounted
Light source
LED
Protection class
IP67, ATEX, explosion-proof
Interior/exterior use
outdoor
Application
industrial
Material
aluminum
Color
gray
Style
industrial design
Dimmable
dimmable
Number of lights
single
Other characteristics
IK10, IK08, explosion-proof, ATEX
Height

Max.: 129 mm
(5 in)

Min.: 129 mm
(5 in)

Length

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 40 W

Min.: 40 W

Luminous flux

Max.: 5,600 lm

Min.: 5,600 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
LED explosion-proof luminaire model JN-HB-ATEX-BSeries1 (40W) for hazardous areas (Zone 1 & 2). Available with an emergency back-up battery (3 hours) and multiple mounting options to suit industrial installations.

Key features
  • Power: 40 W — Total luminous flux: 5600 lm — Efficacy: 140 lm/W
  • Light color range: 2200K–7000K, CRI >70
  • Beam angle options: 30°, 60°, 90°, 120°
  • Ingress and impact protection: IP67, IK08 (glass cover); IK10 with wire guard
  • Dimming: 0–10V; Power factor >0.95
  • LED type: SMD; Rated life: 80,000 hours


Applications
  • Petrochemical plants, refineries and tank farms
  • Offshore platforms and marine installations
  • Chemical plants and processing areas
  • Mining, grain handling and silos
  • Any Zone 1 & 2 classified hazardous environments


Technical specifications
  • Product SKU: JN-HB-ATEX-BSeries1 (40W)
  • Input voltage: 200–250V AC (Zone 1,2); 120–277 / 277–480 VAC (North America)
  • Input frequency: 50/60 Hz
  • Luminous flux: 5600 lm; Luminous efficacy: 140 lm/W
  • Color temperature: 2200K–7000K; CRI >70
  • Housing material: Copper-free aluminium, colour: grey
  • IP rating: IP67; Working temperature: -20°C to +45°C; Humidity: 10–95% RH
  • Dimensions: 129 × 270 × 270 mm; Net weight: 4.4 kg
  • Lifespan: 80,000 hours; Warranty: 5 years


Certifications & standards
  • ATEX: II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T80°C...T100°C Db
  • IECEx: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db
  • UL: Class I Div.2; Class II Div.1/2; Class III — UL1598 / UL1598A / UL924
  • Other: RETILAP Esquema 5, CSA, ETL, DLC, ABS, NSF, CB


Mounting & installation
  • Available mounting methods: ceiling, wall, hook pendant, pole pendant, arm mounting (via driver box opening), stanchion mounting
  • Driver access: ceiling mounting or arm mounting by opening the LED driver box
  • Optional emergency back-up battery (3 hours)


Packaging & shipping
  • Product dimensions (mm): 129 × 270 × 270
  • Export carton dimensions (mm): 386 × 330 × 220
  • Products per carton: 1; Export carton gross weight: 5.5 kg
