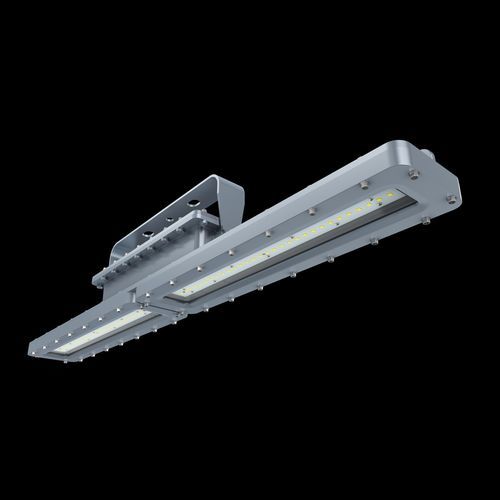

Hanging light fixture JN-ATEX-LINEARCSERIES2

surface-mountedLEDrectangular

ATEX-certified explosion-proof linear LED luminaire delivering 16800 lm from 120 W. Designed for hazardous zones with IP67 ingress protection and a 120° beam angle, it uses Philips Lumileds LEDs and offers a wide colour temperature range (2200–6500K). Compliant with ATEX, IECEx and multiple international standards for use in gas and dust hazardous areas.

Available mounting methods

• Ceiling mounting
• Wall mounting
• Pole bracket mounting
• Pendant mounting
• Chain mounting

Technical specifications

• Product SKU: JN-ATEX-LinearCSeries2 (120W)
• Power consumption: 120 W
• Input voltage: AC100–277V; 200–480VAC; 12–36VDC
• Input frequency: 50/60 Hz
• Light colour: 2200K–6500K
• LED type: Philips Lumileds
• Total lumen output: 16800 lm
• Luminous efficacy: 140 lm/W
• Power factor: >0.95
• IK impact rating: IK08 (glass cover)
• Housing colour: Grey
• Housing material: Copper-free aluminium, tempered glass
• Warranty period: 5 years
• IP rating: IP67
• Colour rendering index (CRI): >70
• Beam angle: 120°
• Dimming capability: 0–10V (optional)
• ATEX standard: II2 G Ex db IIB T4 Gb, II2 D Ex tb IIIC, T63.5°C Db IP65
• IECEx standard: Ex db IIB T4 Gb, Ex tb IIIC, T63.5°C Db IP65
• UL standard: Class I, Division 1, Groups C, D; Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
• Retilap standard: Esquema 5 RETILAP
• Other standards: CB (Ref. Certif. No.: DE 2-038462-M1); UL1598, UL1598A, UL924, ETL, ABS, DLC, 1000 hours salt spray / 5G vibration
• Fixture shape: Rectangular
• Fixture height: 133 mm
• Fixture width: 270 mm
• Fixture length: 1184 mm
• Net weight: 18.5 kg
• Temperature class: T6
• Gas group: IIC
• Protection type: Ex eb mb
• Zone classification: Zone 1 & 2
• IK rating with wire guard: IK10 (with wire guard)
• Operating temperature range: -20°C to +45°C
• Operating humidity range: 10–95% RH
• Lifespan: 80,000 hours
