ATEX floodlight JNFL-ATEX-FSERIES1
explosion-proofIP67LED

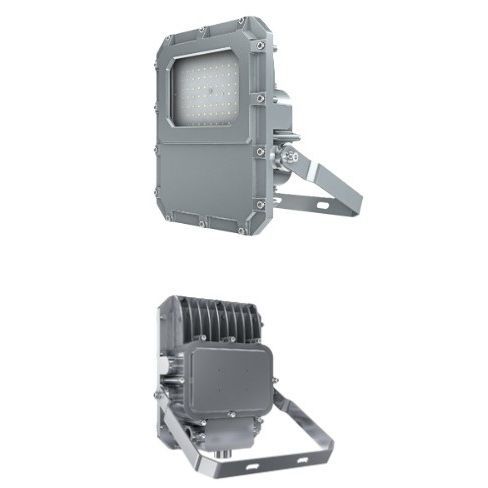

ATEX floodlight - JNFL-ATEX-FSERIES1 - JNLED - explosion-proof / IP67 / LED
ATEX floodlight - JNFL-ATEX-FSERIES1 - JNLED - explosion-proof / IP67 / LED
ATEX floodlight - JNFL-ATEX-FSERIES1 - JNLED - explosion-proof / IP67 / LED - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
ATEX, explosion-proof, IP67
Light source
LED
Application
industrial
Interior/exterior use
outdoor
Shape
rectangular
Dimmable
dimmable
Other characteristics
IK09, adjustable, high-efficiency
Height

Max.: 98 mm
(4 in)

Min.: 98 mm
(4 in)

Length

Max.: 318 mm
(13 in)

Min.: 318 mm
(13 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 100 W
(0.14 hp)

Min.: 100 W
(0.14 hp)

Luminous flux

Max.: 13,000 lm

Min.: 13,000 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
Certified ATEX/IECEx/UL explosion-proof LED luminaire for hazardous locations. 100 W, 13,000 lm, selectable beam angles and wide color temperature range.

Product overview
SKU: JNFL-ATEX-FSeries1 (100W). Certified for hazardous zones (Zone 1 & 2). Available beam angles: 40°, 60°, 90°, 120°. Color temperature: 2200K–7000K. Ingress protection: IP67. IK09 with wire guard.

Product specifications (table)
Product SKU: JNFL-ATEX-FSeries1 (100W)
Power Consumption: 100 W
Input Voltage: AC 120–277 V, 50/60 Hz; DC 36 V
Input Frequency: 50/60 Hz
Light Color: 2200K–7000K
LED Type: Philips LUMILEDs 3030 or 5050
Total Lumens Output: 13,000 lm
Luminous Efficacy: 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK07 (without wire guard); IK09 (with wire guard)
Housing Colour: Grey
Housing Material: Copper-free aluminium, tempered glass
Warranty Period: 5 years
IP Rating: IP67
Color Rendering Index (CRI): >70
Beam Angles: 40°, 60°, 90°, 120°
Dimming Capability: 0–10 V (optional)
ATEX: II 2 G Ex db IIB T6...T4 Gb; II 2 D Ex tb IIIC T80°...120°C Db; Ex db eb IIB etc.
IECEx / UL / RETILAP: See detailed certifications
Fixture Shape: Rectangular
Dimensions (HxWxL): 98 × 270 × 318 mm
Net Weight: 8.5 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
Operating Temperature: -20°C to +45°C
Operating Humidity: 10–95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 98.5 × 270 × 318 mm
Net Weight (kg): 8.5 kg
Export Carton Dimensions (mm): 386 × 330 × 220
Products per Carton: 1
Export Carton Gross Weight: 10 kg

Product Gallery
Main and additional product images available, including dimensional drawings and installation views.

Technical features
  • Product SKU: JNFL-ATEX-FSeries1 (100W)
  • Power: 100 W — 13,000 lm (140 lm/W)
  • Beam angles: 40° / 60° / 90° / 120°
  • Color temperature: 2200K–7000K
  • LED: Philips LUMILEDs 3030 or 5050
  • Input: AC 120–277 V / DC 36 V, 50/60 Hz
  • IP67 ingress protection; IK09 with wire guard
  • Materials: Copper-free aluminium housing, tempered glass
  • Certifications: ATEX, IECEx, UL, RETILAP (see details)
  • Operating range: -20°C to +45°C, 10–95% RH
  • Lifespan: 80,000 hours; Warranty: 5 years
