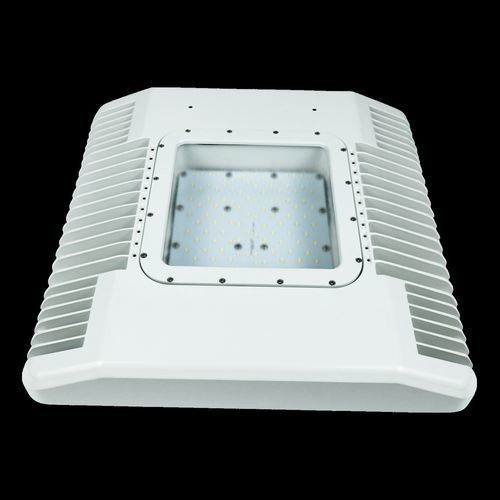

Hanging light fixture JN-C-ATEX-CANOPYSERIES

surface-mountedLEDhigh

Overview
ATEX-certified explosion-proof LED canopy light designed for hazardous areas (Zone 1 & 2). Provides high lumen output with robust ingress and impact protection for stanchion or pendant mounting. Engineered for long service life and energy-efficient operation in industrial and offshore environments.

Key features

• Mounting options: stanchion mounting, pendant mounting
• Adjustable light colour range: 2200K–7000K
• Total lumen output: 21,000 lm with 140 lm/W luminous efficacy
• Construction: copper-free aluminium housing with tempered glass
• Ingress and impact protection: IP66 and IK09 (IK10 with wire guard)
• Certifications: ATEX, IECEx, UL and RETILAP classifications for explosive atmospheres

Technical specifications

• Product SKU: JN-C-ATEX-CanopySeries (120W)
• Power consumption: 120 W
• Input voltage: 100–277 VAC, 50/60 Hz
• Light colour: 2200K–7000K
• LED type: Philips Lumileds
• Total luminous flux: 21,000 lm
• Luminous efficacy: 140 lm/W
• Power factor: >0.95
• IK impact rating: IK09 (IK10 with wire guard)
• Housing colour: off-white
• Housing material: copper-free aluminium, tempered glass
• Warranty: 5 years
• IP rating: IP66
• CRI: >70
• Beam angle: 120°
• Dimming: non-dimmable
• ATEX: II2 G Ex eb op is IIC T5/T6 GC, II2 D Ex op is tb IIIC T80°C Db
• IECEx: Ex ec op is IIC T6/T5/T4/T3 Gc, Ex op is tb IIIC T80°C/T95°C/T130°C/T195°C Db
• UL: Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
• Retilap: Esquema 5 RETILAP
• Fixture shape: square
• Dimensions (H×W×L): 94 mm × 270 mm × 385 mm
• Net weight: 4 kg
• Temperature class: T6
• Gas group: IIC
• Protection type: Ex eb mb
• Zone classification: Zone 1 & 2
• Working temperature: -20°C to +45°C
• Working humidity: 10–95% RH
• Rated lifespan: 80,000 hours
