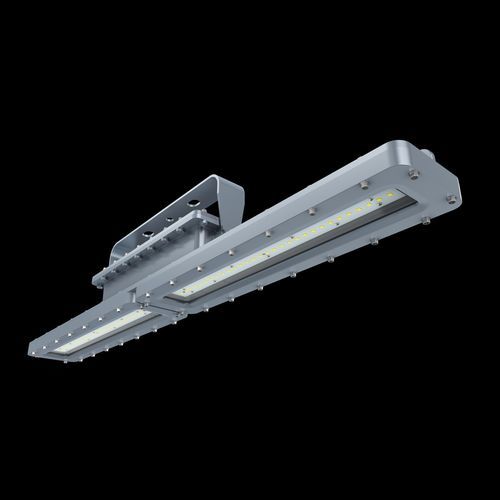

Tunnel lighting JN-ATEX-LINEARCSERIES2

Product overview
ATEX-rated explosion-proof linear LED luminaire designed for hazardous areas. Delivers 14,000 lm from 100 W with a 120° beam angle and IP67 protection. Certified for Zone 1 & 2 use (T6) and suitable for installations requiring IECEx/ATEX compliance.

Available mounting methods

• Ceiling mounting
• Wall mounting
• Pole bracket mounting
• Pendant mounting
• Chain mounting

Technical specifications

• Product SKU: JN-ATEX-LinearCSeries2 (100W)
• Power consumption: 100 W
• Input voltage: AC 100–277 V; 200–480 VAC; 12–36 VDC
• Input frequency: 50/60 Hz
• Light colour temperature: 2200K–6500K
• LED type: Philips Lumileds
• Total luminous flux: 14,000 lm
• Luminous efficacy: 140 lm/W
• Power factor: >0.95
• Color Rendering Index (CRI): >70
• Beam angle: 120°
• Dimming: 0–10 V (optional)
• Lifespan: 80,000 hours

Certifications & standards

• ATEX: II2 G Ex db IIB T4 Gb; II2 D Ex tb IIIC, T63.5°C Db IP65
• IECEx: Ex db IIB T4 Gb; Ex tb IIIC, T63.5°C Db IP65
• UL: Class I Div.1 Groups C,D; Class I Div.2 Groups A,B,C,D; Class II Div.1 Groups E,F,G; Class II Div.2 Groups F,G; Class III
• Other: CB (DE 2-038462-M1), UL1598, UL1598A, UL924, ETL, ABS, DLC
• Retilap: Esquema 5 RETILAP
• Salt spray / vibration: 1000 h salt spray / 5G vibration

Mechanical & environmental data

• Housing material: Copper-free aluminium, tempered glass
• Housing colour: Grey
• Fixture shape: Rectangular
• Dimensions (H×W×L): 133 mm × 270 mm × 1184 mm
• Net weight: 18.5 kg
• IP rating: IP67
• IK rating: IK08 (glass cover); IK10 with wire guard
• Working temperature: -20°C to +45°C
• Working humidity: 10–95% RH

Typical applications

• Petrochemical plants, offshore platforms
• Refineries and chemical processing
• Storage and loading areas with explosive atmospheres
• Hazardous-area tunnels and utility corridors
