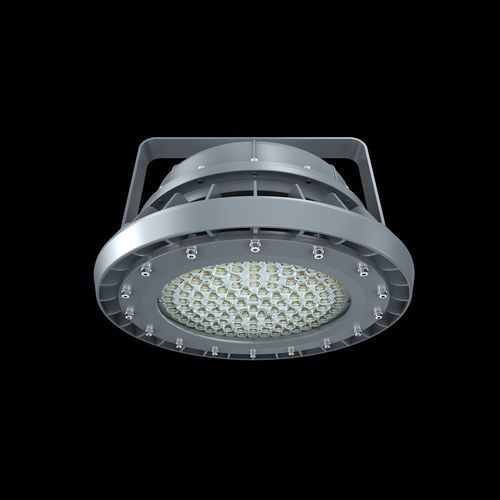

IP67 floodlight JN-HB-ATEX-BSERIES3

ATEXexplosion-proofLED

Overview
JN-HB-ATEX-BSeries3 is an ATEX- and IECEx-certified explosion-proof LED luminaire for Zone 1 & 2 (gas group IIC). Rated temperature class T6, IP67 protection and IK08 (IK10 with wire guard). Delivers 21,000 lm at 150 W with 140 lm/W efficacy and 80,000 hours rated life. Optional 3-hour emergency backup battery available.

Technical specifications (detailed)
SKU: JN-HB-ATEX-BSeries3 (150W)
Power: 150 W
Light output: 21,000 lm
Efficacy: 140 lm/W
Input voltage: 200–250V AC (Zone 1,2); 120–277 / 277–480 VAC (North America)
Frequency: 50/60 Hz
Color temperature: 2200K–7000K
LED type: SMD
Beam angles: 30°, 60°, 90°, 120°
Dimming: 0–10V
CRI: >70
IP rating: IP67
IK rating: IK08 (glass) — IK10 with wire guard
Housing: Copper-free aluminium, grey
Dimensions (HxWxL): 176×270×370 mm
Net weight: 8.2 kg
Operating temperature: -20°C to +45°C
Humidity: 10–95% RH
Lifespan: 80,000 hours

Certifications & protection
ATEX: II 2 G Ex eb mb IIC T6...T4 Gb / II 2 D Ex tb IIIC T80°C...T100°C Db
IECEx: Ex eb mb IIC T6...T4 Gb / Ex tb IIIC T80°C...T100°C Db
UL: Class I Division 2 Groups A,B,C,D; Class II Division 1 Groups E,F,G; Class II Division 2 Groups F,G; Class III
Other standards: Esquema 5 RETILAP, UL1598 / UL1598A / UL924, ETL, DLC, ABS, NSF, CB

Mounting & options
Available mounting: ceiling, wall, hook pendant, pole pendant, ceiling/arm mounting via LED driver box opening, stanchion mounting
Optional emergency back-up battery with 3 hours autonomy

Packaging & shipping
Product dimensions (mm): 176×270×370
Export carton: 480×460×265 mm, 1 unit per carton, gross weight 10.5 kg

Key features

• ATEX/IECEx certified for Zone 1 & 2, gas group IIC, Temperature class T6
• High luminous output: 21,000 lm at 150 W (140 lm/W)
• IP67 ingress protection and IK08 (IK10 with wire guard)
• Wide CCT range 2200–7000K, 0–10V dimming
• Multiple mounting options and optional 3 h emergency battery
• Comprehensive certifications: RETILAP Esquema 5, UL, IECEx, ETL, DLC, ABS, NSF
