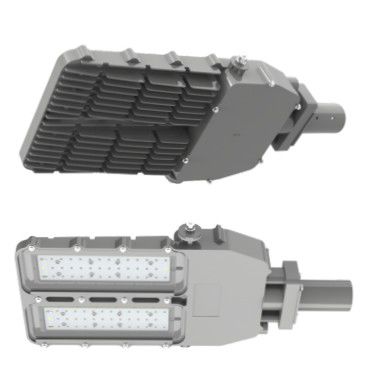

Urban lamp post JN-ATEX-STREETLIGHTSERIES2

contemporarystainless steelLED

Description
ATEX-certified explosion-proof LED streetlight JN-ATEX-StreetlightSeries2 designed for hazardous areas (Zone 1 & 2). Rugged ADC12 aluminium housing with stainless steel fasteners, multiple beam angles and selectable color temperatures for industrial outdoor lighting.

Product Specifications
Product SKU: JN-ATEX-StreetlightSeries2 (100W)
Power: 100 W
Total Luminous Flux: 14,000 lm
Luminous Efficacy: 130 lm/W
Input Voltage: AC 120–277 V, 50/60 Hz
Power Factor: >0.95
Beam Angles: 40°, 60°, 90°, 120°
Color Temperature: 2700K–6500K
CRI: >70
IP Rating: IP67
Housing Material / Colour: ADC12 aluminium / Grey
IK Rating: IK07 (without wire guard) / IK09 (with wire guard)
Dimming: 0–10 V (optional)
Certifications: ATEX, IECEx, UL1598, UL1598A, UL924, ETL, RETILAP (Esquema 5), ABS
Standards (examples): ZONE 1 II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 II 3G Ex ec mb IIC T6...T4 Gc; IECEx equivalents; UL: Class I Div.2 / Class II / Class III
Temperature Class / Gas Group: T6 / IIC
Zone Classification: Zone 1 & Zone 2
Operating Temperature: -20°C to +45°C
Relative Humidity: 10–95% RH
Lifespan: 80,000 hours
Net Weight: 7.5 kg
Fixture Shape / Dimensions (HxWxL): Rectangular / 74 × 270 × 415 mm

Packaging & Shipping
Product Dimensions (mm): 74.5 × 270 × 415 mm
Net Weight (kg): 7.5
Export Carton Dimensions (mm): 820 × 260 × 190
Products per Carton: 1
Export Carton Gross Weight (kg): 7.5

Technical specifications

• Power: 100 W
• Lumens: 14,000 lm
• Efficacy: 130 lm/W
• Input Voltage: AC 120–277 V, 50/60 Hz
• Beam Angles: 40°, 60°, 90°, 120°
• Color Temperature: 2700K–6500K
• IP Rating: IP67
• Housing: ADC12 aluminium (grey) with stainless steel fasteners
• IK Rating: IK07 / IK09 (with wire guard)
• CRI: >70
• Dimming: 0–10 V (optional)
• Certifications: ATEX, IECEx, UL, RETILAP, ETL, ABS
• Operating Temp: -20°C to +45°C
• Lifespan: 80,000 hours
• Net Weight: 7.5 kg
