Pole-mounted light fixture DSERIES2
surface-mountedLEDexplosion-proof

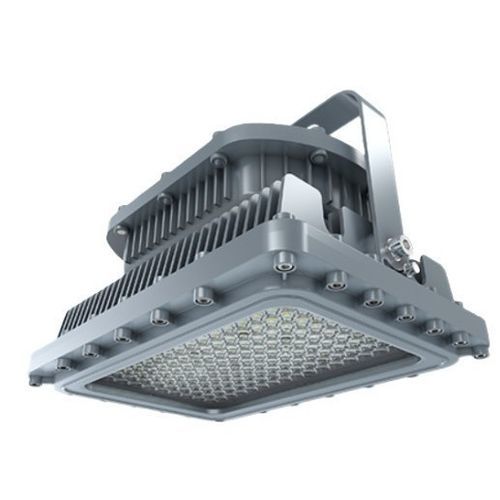

Pole-mounted light fixture - DSERIES2 - JNLED - surface-mounted / LED / explosion-proof
Pole-mounted light fixture - DSERIES2 - JNLED - surface-mounted / LED / explosion-proof
Pole-mounted light fixture - DSERIES2 - JNLED - surface-mounted / LED / explosion-proof - image - 2
Pole-mounted light fixture - DSERIES2 - JNLED - surface-mounted / LED / explosion-proof - image - 3
Pole-mounted light fixture - DSERIES2 - JNLED - surface-mounted / LED / explosion-proof - image - 4
Pole-mounted light fixture - DSERIES2 - JNLED - surface-mounted / LED / explosion-proof - image - 5
Add to favorites
Compare this product

Characteristics

Type
pole-mounted, surface-mounted
Light source
LED
Protection class
explosion-proof, ATEX, IP67
Interior/exterior use
outdoor
Application
for factory, industrial
Material
aluminum, glass
Color
gray
Style
industrial design
Dimmable
dimmable
Number of lights
single
Other characteristics
ATEX, emergency, explosion-proof
Height

Max.: 129 mm
(5 in)

Min.: 129 mm
(5 in)

Length

Max.: 400 mm
(16 in)

Min.: 400 mm
(16 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

100 W
(0.14 hp)

Luminous flux

13,500 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

This ATEX-certified explosion-proof LED luminaire delivers 13,500 lm at 100 W and is designed for hazardous industrial locations. It combines high ingress and impact protection with multiple beam angles and a wide colour temperature range. Optional emergency backup, dimming and several mounting configurations allow adaptation to site requirements.

Key features
  • ATEX-certified for gas and dust environments; suitable for Zone 1 & 2.
  • Emergency back-up battery available (back-up time: 3 hours).
  • Mounting options: ceiling, wall, pole pendant (DSeries2 only), diagonal pole (DSeries2 only), wall with junction box (90°).
  • Beam angles: 40°, 60°, 90°, 120°.
  • Light colour range: 2200K–7000K; CRI >70.


Technical specifications
  • Product SKU: JNFL-ATEX-A1-DSeries2 (100W)
  • Power consumption: 100 W
  • Input voltage: 100–277 VAC; 200–480 VAC; 12–48 VDC
  • Input frequency: 50/60 Hz
  • LED type: SMD
  • Total luminous flux: 13500 lm
  • Luminous efficacy: 140 lm/W
  • Power factor: >0.95
  • IK rating: IK08 (glass cover); IK10 with wire guard
  • IP rating: IP67
  • Housing: copper-free aluminium, tempered glass; colour: grey
  • Fixture dimensions (mm): H 129 × W 270 × L 400
  • Net weight: 7 kg
  • Operating temperature: -20°C to +45°C
  • Operating humidity: 10–95% RH
  • Lifespan: 80,000 hours
  • Dimming: 0–10 V (optional)
  • Temperature class & gas group: T6, Gas group IIC
  • Protection type: Ex eb mb; Zone classification: Zone 1 & 2
  • Certifications/standards: ATEX, IECEx, UL (multiple Division/Class options), UL1598, UL1598A, UL924, ETL, DLC, ABS, CSA, CB, RETILAP Esquema 5


Applications
  • Oil & gas facilities, refineries and pipelines
  • Petrochemical and chemical plants
  • Offshore platforms and FPSO
  • Mining and tunnelling
  • Enclosed industrial spaces with explosive dust (silos, dryers)


Ordering information
  • Available beam angles: 40° / 60° / 90° / 120°
  • Colour temperatures: 2200K–7000K (specify on order)
  • Options: emergency back-up, 0–10 V dimming, wire guard, multiple mounting kits
  • Refer to SKU JNFL-ATEX-A1-DSeries2 for 100 W configuration
