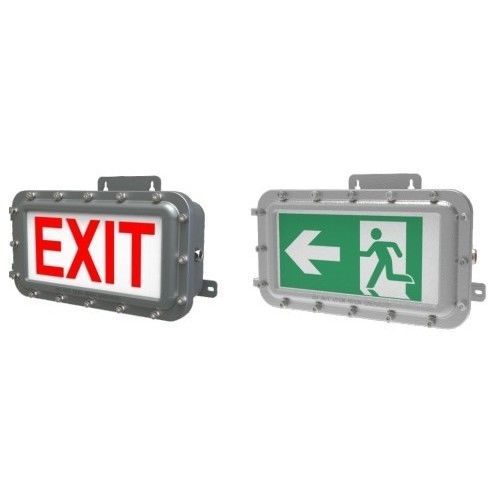

Wall-mounted emergency light JN-ATEX-EXIT1SERIES

rectangularLEDcast aluminum

ATEX-certified explosion-proof LED fixture from JNLED Exit1Series, designed for hazardous areas (Zone 1 & 2) offering robust IP67 protection and a wide colour temperature range (2700K–6500K).

Features / technical specifications

• Power Consumption: 20 W
• Input Voltage: AC100–277V (by driver and by IC)
• Input Frequency: 50 / 60 Hz
• Light Colour: 2700K–6500K
• LED Type: SMD
• Total Lumens Output: 540–1,080 lm
• Luminous Efficacy: 140 lm/W
• Power Factor: >0.95
• IK Impact Rating: IK08 (IK10 with wire guard)
• Housing Colour: Grey
• Housing Material: Die-casting Aluminium
• Warranty Period: 5 years
• IP Rating: IP67
• Colour Rendering Index (CRI): >70
• Beam Angle: 30°, 60°, 90°, 120°
• Dimming Capability: Non-dimmable
• ATEX Standard: II 2 G Ex db IIB+H2 T6 Gb; II2 D Ex tb IIIC T80°C Db
• IECEx Standard: Ex db IIB+H2 T6 Gb; Ex tb IIIC T80°C Db
• UL Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
• Retilap Standard: Esquema 5 RETILAP
• Protection Type: Ex eb mb
• Gas Group: IIC
• Temperature Class: T6
• Zone Classification: Zone 1 & 2
• Fixture Shape: Rectangular
• Fixture Dimensions (HxWxL): 162 × 270 × 443 mm
• Net Weight: 18 kg
• Working Temperature Range: -20°C to +45°C
• Working Humidity Range: 10–95% RH
• Lifespan: 80,000 hours
• Available mounting method: wall mounting
• Access: Hinged access door
• Cable entries: Supplied with 3/4” NPT or M25 conduit hubs
• Labeling: Label content can be customized (various languages and exit signs available)
• Packaging / Shipping: Product dimensions 162×270×443 mm; Export carton dimensions 660×510×260 mm; Products per carton: 1; Export carton gross weight: 21 kg

Applications & mounting

• Designed for hazardous industrial environments, petrochemical plants, offshore platforms and refineries
• Wall mounting with hinged access door for maintenance
• Suitable for indoor and outdoor use where ATEX/IECEx certification is required

Ordering and packaging

• Model: JNLED Exit1Series (20W)
• Custom labeling and exit signage available on request
• Delivered with appropriate conduit hubs; contact supplier for regional certifications or custom options
