Hanging light fixture JN-HB-ATEX-BSERIES1
surface-mountedpole-mountedLED

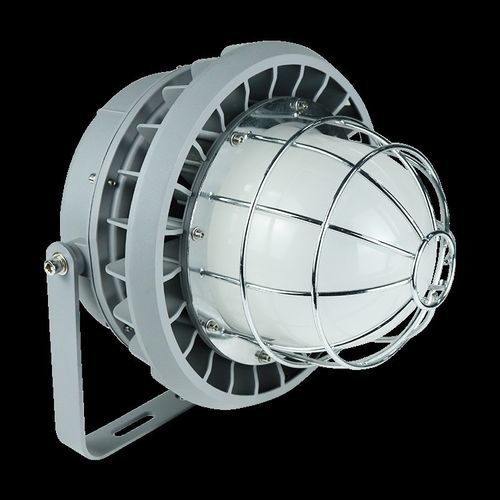

Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 2
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 3
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 4
Hanging light fixture - JN-HB-ATEX-BSERIES1 - JNLED - surface-mounted / pole-mounted / LED - image - 5
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Type
hanging, surface-mounted, pole-mounted
Light source
LED
Shape
round
Protection class
IP67, ATEX, explosion-proof
Application
industrial
Material
aluminum
Color
gray
Style
contemporary
Dimmable
dimmable
Number of lights
single
Other characteristics
IK10, emergency, IK08, explosion-proof, ATEX
Height

Max.: 129 mm
(5 in)

Min.: 129 mm
(5 in)

Length

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 20 W

Min.: 20 W

Luminous flux

Max.: 2,800 lm

Min.: 2,800 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
Available with emergency back-up battery (back-up time: 3 hours).

Mounting methods
  • Ceiling mounting
  • Wall mounting
  • Hook pendant
  • Pole pendant
  • Ceiling mounting by opening the LED driver box
  • Arm mounting by opening the LED driver box
  • Stanchion mounting

Certifications & Standards
  • Esquema 5 RETILAP
  • UL (Class I Division 2 / Class II / Class III as specified)
  • IECEx
  • ATEX (standards detailed in specifications)
  • CSA
  • ABS
  • Other standards: UL1598, UL1598A, UL924, ETL, DLC, NSF, CB

Packaging & Shipping (key items)
  • Product Dimensions (mm): 129×270×270 mm
  • Net Weight (kg): 4.4 kg
  • Export Carton Dimensions (mm): 386×330×220
  • Products per Carton: 1
  • Export Carton Gross Weight (kg): 5.5 kg
  • Fixture Height (mm): 129
  • Fixture Width (mm): 270
  • Fixture Length (mm): 270

Technical specifications
  • Product SKU: JN-HB-ATEX-BSeries1 (20W)
  • Power Consumption: 20 W
  • Input Voltage: 200-250V AC (Zone 1,2); 120-277 / 277-480 VAC (North America)
  • Input Frequency: 50 / 60 Hz
  • Light Color: 2200K - 7000K
  • LED Type: SMD
  • Total Lumens Output: 2800 lm
  • Luminous Efficacy (lm/W): 140
  • Power Factor: >0.95
  • IK Impact Rating: IK08 (Glass cover)
  • Housing Colour: Grey
  • Housing Material: Copper free aluminium
  • Warranty Period (Years): 5
  • IP Rating: IP67
  • Color Rendering Index (CRI): >70
  • Beam Angle (°): 30°, 60°, 90°, 120°
  • Dimming Capability: 0-10V
  • ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T80°C...T100°C Db; II 3 G Ex ec IIC T6...T3 Gc; II 2 D Ex tb IIIC T85℃...T103℃ Db
  • IECEx Standard: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db; Ex ec IIC T6...T3 Gc; Ex tb IIIC T85°C...T100°C Db
  • UL Standard: Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
  • Retilap Standard: Esquema 5 RETILAP
  • Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
  • Fixture Shape: Round
  • Fixture Height: 129 mm
  • Fixture Width: 270 mm
  • Fixture Length: 270 mm
  • Net Weight: 4.4 kg
  • Temperature Class: T6
  • Gas Group: IIC
  • Protection Type: Ex eb mb
  • Zone Classification: Zone 1 & 2
  • IK Rating with Wire Guard: IK10 (with wire guard)
  • Working Temperature Range: -20°C to +45°C
  • Working Humidity Range: 10-95% RH
  • Lifespan (Hours): 80,000 hours
