Surface-mounted light fixture JNHB-ATEX-GSERIES1
pole-mountedLEDround

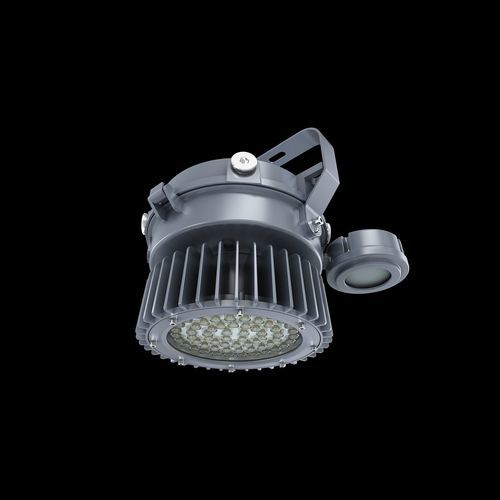

Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round
Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round
Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Type
surface-mounted, pole-mounted
Light source
LED
Shape
round
Protection class
IP66, ATEX, explosion-proof
Interior/exterior use
outdoor
Application
industrial
Material
tempered glass facing, aluminum
Color
gray
Style
industrial design
Dimmable
not dimmable
Number of lights
multiple
Other characteristics
IK10, with motion sensor, IK08, explosion-proof, ATEX
Height

Min.: 193 mm
(8 in)

Max.: 193 mm
(8 in)

Length

Min.: 338 mm
(13 in)

Max.: 338 mm
(13 in)

Width

Min.: 270 mm
(11 in)

Max.: 270 mm
(11 in)

Power

Min.: 20 W

Max.: 20 W

Luminous flux

Min.: 2,600 lm

Max.: 2,600 lm

Color temperature

Min.: 2,700 K

Max.: 6,500 K

Color rendering index (CRI)

Min.: 70 unit

Max.: 100 unit

Description

Short description
Available mounting methods: bracket ceiling mounting, ceiling mounting, wall mounting, pole mounting. Available with microwave motion sensor (optional).

Specification Details
Available mounting methods: bracket ceiling mounting, ceiling mounting, wall mounting, pole mounting. Available with microwave motion sensor (optional). Certifications: ATEX, IECEx, UL, Retilap as listed. Zone classification: Zone 1 & 2.

Product Specifications
Product SKU: JNHB-ATEX-GSeries1 (20W)
Power Consumption: 20 W
Input Voltage: AC100-277V, AC220-480V
Input Frequency: 50/60 Hz
Light Color: 2700K-6500K
LED Type: Philips Lumileds
Total Lumens Output: 2600 lm
Luminous Efficacy: 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (glass cover) / IK10 with wire guard
Housing Colour: Grey
Housing Material: Copper-free aluminium, tempered glass
Warranty Period: 5 years
IP Rating: IP66
Color Rendering Index (CRI): >70
Beam Angle: 30°, 60°, 90°, 120°
Dimming Capability: Non-dimmable
ATEX Standard: II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db
IECEx Standard: Ex xR IIC T6...T4 Gc; Ex tb IIIC T80°C...T130°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
Retilap Standard: Esquema 5 RETILAP
Fixture Shape: Round
Fixture Dimensions (H×W×L): 193×270×338 mm
Net Weight: 10.5 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10–95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 193.2×270×338 mm
Net Weight (kg): 10.5 kg
Export Carton Dimensions (mm): 530×520×380 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 12.5 kg

Technical features / specifications
  • Product SKU: JNHB-ATEX-GSeries1 (20W)
  • Power Consumption: 20 W
  • Input Voltage: AC100-277V, AC220-480V
  • Input Frequency: 50/60 Hz
  • Light Color: 2700K-6500K
  • LED Type: Philips Lumileds
  • Total Lumens Output: 2600 lm
  • Luminous Efficacy: 140 lm/W
  • Power Factor: >0.95
  • IK Impact Rating: IK08 (glass cover)
  • Housing Material: Copper-free aluminium, tempered glass
  • IP Rating: IP66
  • CRI: >70
  • Beam Angle (°): 30°, 60°, 90°, 120°
  • Dimming: Non-dimmable
  • ATEX / IECEx / UL / Retilap certifications as listed
  • Fixture Dimensions (H×W×L): 193×270×338 mm
  • Net Weight: 10.5 kg
  • Working Temperature Range: -20°C to +45°C
  • Lifespan: 80,000 hours
