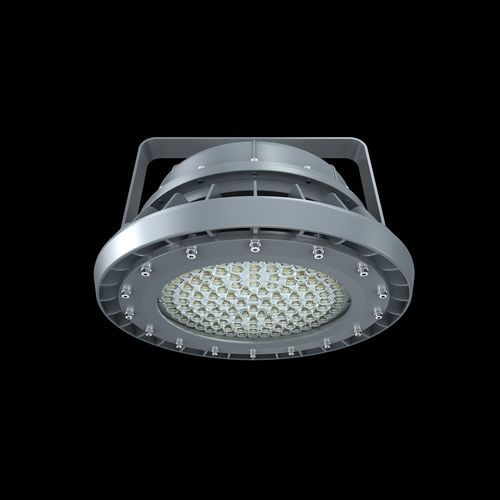

IP67 floodlight JN-HB-ATEX-BSERIES3

ATEXexplosion-proofLED

Short description
ATEX-certified explosion-proof LED luminaire JN-HB-ATEX-BSeries3, 120 W, delivering 16,000 lm. Suitable for Zone 1 and 2 hazardous areas (gas group IIC). IP67-rated, available in 30/60/90/120° beams and 2200K–7000K color temperatures. Optional emergency back-up battery (3 hours).

Available mounting methods

• Ceiling mounting
• Wall mounting
• Hook pendant
• Pole pendant
• Ceiling mounting via LED driver box opening
• Arm mounting via LED driver box opening
• Stanchion mounting

Key specifications

• Product SKU: JN-HB-ATEX-BSeries3 (120W)
• Power consumption: 120 W
• Input voltage: 200–250 V AC (Zone 1,2); 120–277 / 277–480 VAC (North America)
• Input frequency: 50/60 Hz
• Light color: 2200K–7000K
• LED type: SMD
• Total luminous flux: 16,000 lm
• Luminous efficacy: 140 lm/W
• Power factor: >0.95
• IK impact rating: IK08 (glass cover); IK10 with wire guard
• Housing: copper-free aluminium, grey
• Warranty: 5 years
• IP rating: IP67
• Color rendering index (CRI): >70
• Beam angles: 30°, 60°, 90°, 120°
• Dimming: 0–10 V
• Lifespan: 80,000 hours
• Dimensions (HxWxL): 176 × 270 × 370 mm
• Net weight: 8.2 kg
• Working temperature: -20°C to +45°C
• Working humidity: 10–95% RH

Certifications & standards

• ATEX: II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T80°C...T100°C Db; II 3 G Ex ec IIC T6...T3 Gc; II 2 D Ex tb IIIC T85℃...T103℃ Db
• IECEx: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db; Ex ec IIC T6...T3 Gc; Ex tb IIIC T85°C...T100°C Db
• UL: Class I, Division 2 (Groups A–D); Class II, Division 1 (Groups E–G); Class II, Division 2 (Groups F–G); Class III
• Retilap: Esquema 5 RETILAP
• Other: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
