Surface-mounted light fixture JNHB-ATEX-GSERIES1
pole-mountedLEDround

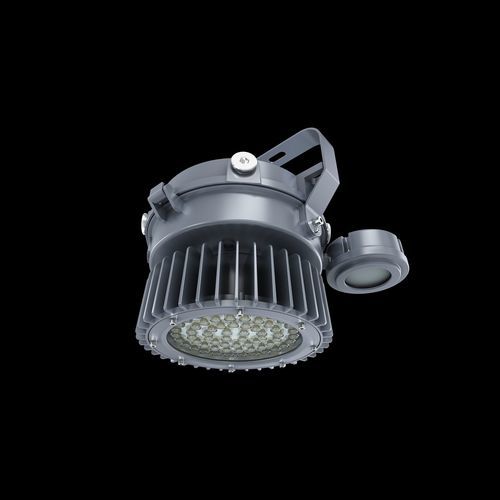

Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round
Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round
Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round - image - 2
Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round - image - 3
Surface-mounted light fixture - JNHB-ATEX-GSERIES1 - JNLED - pole-mounted / LED / round - image - 4
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Type
surface-mounted, pole-mounted
Light source
LED
Shape
round
Protection class
IP66, ATEX, ATEX zone 2, explosion-proof
Interior/exterior use
outdoor
Application
industrial
Material
tempered glass facing, aluminum
Color
gray
Dimmable
not dimmable
Number of lights
multiple
Other characteristics
IK10, with motion sensor, IK08, high-efficiency, explosion-proof, ATEX
Height

Max.: 193 mm
(8 in)

Min.: 193 mm
(8 in)

Length

Max.: 338 mm
(13 in)

Min.: 338 mm
(13 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 60 W

Min.: 60 W

Luminous flux

Max.: 7,800 lm

Min.: 7,800 lm

Color temperature

Max.: 6,500 K

Min.: 2,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Product short description
Round ATEX explosion-proof LED luminaire JNHB-ATEX-GSeries1, 60 W, 7800 lm. Designed for Zone 1 & 2 hazardous areas with IP66 protection and Philips Lumileds LEDs. Available beam angles and color temperatures for industrial applications.

Key features
  • Mounting options: bracket ceiling, ceiling, wall, pole
  • Optional microwave motion sensor
  • High efficacy: 140 lm/W, total output 7800 lm
  • Robust materials: copper-free aluminium housing, tempered glass
  • IP66 / IK08 (IK10 with wire guard)


Product specifications
  • Model: JNHB-ATEX-GSeries1 (60W)
  • Power consumption: 60 W
  • Input voltage: AC100–277V, AC220–480V
  • Input frequency: 50/60 Hz
  • Light color: 2700K–6500K
  • LED type: Philips Lumileds
  • Total lumens output: 7800 lm
  • Luminous efficacy: 140 lm/W
  • Power factor: >0.95
  • Color rendering index (CRI): >70
  • Beam angles: 30°, 60°, 90°, 120°
  • Dimming capability: Non-dimmable
  • IK impact rating: IK08 (IK10 with wire guard)
  • Housing material & color: Copper-free aluminium, tempered glass; Grey
  • Net weight: 10.5 kg
  • Fixture dimensions (H×W×L): 193 × 270 × 338 mm
  • Lifespan: 80,000 hours


Certifications
  • ATEX: II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db
  • IECEx: Ex xR IIC T6...T4 Gc; Ex tb IIIC T80°C...T130°C Db
  • UL: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
  • Retilap: Esquema 5 RETILAP


Mechanical & environmental
  • Protection type: Ex eb mb
  • Zone classification: Zone 1 & 2
  • Temperature class: T6
  • Working temperature range: -20°C to +45°C
  • Working humidity range: 10–95% RH


Packaging & Shipping
  • Product dimensions (mm): 193.2 × 270 × 338 mm
  • Net weight (kg): 10.5
  • Export carton dimensions (mm): 530 × 520 × 380
  • Products per carton: 1
  • Export carton gross weight (kg): 12.5
