Explosion-proof floodlight JNFL-ATEX-FSERIES2
IP67ATEXLED

Explosion-proof floodlight - JNFL-ATEX-FSERIES2 - JNLED - IP67 / ATEX / LED
Explosion-proof floodlight - JNFL-ATEX-FSERIES2 - JNLED - IP67 / ATEX / LED
Explosion-proof floodlight - JNFL-ATEX-FSERIES2 - JNLED - IP67 / ATEX / LED - image - 2
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
explosion-proof, IP67, ATEX
Light source
LED
Application
for boat, for gas stations, industrial, for factory
Interior/exterior use
outdoor
Shape
rectangular
Dimmable
dimmable
Other characteristics
IK09, high-efficiency, IK07, energy-saving
Height

Max.: 103 mm
(4 in)

Min.: 103 mm
(4 in)

Length

Max.: 380 mm
(15 in)

Min.: 380 mm
(15 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 150 W
(0.2 hp)

Min.: 150 W
(0.2 hp)

Luminous flux

Max.: 19,500 lm

Min.: 19,500 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Product overview
This ATEX-certified explosion-proof LED luminaire (SKU: JNFL-ATEX-FSeries2) is engineered for hazardous industrial environments (Zone 1 & 2) where gas and dust atmospheres are present. Delivering 19500 lm at 150 W with selectable beam angles and a wide CCT range, it provides efficient, classified-area lighting for process plants, offshore, marine and petrochemical installations.

Key features
  • Power: 150 W
  • Total luminous flux: 19500 lm
  • Beam angles: 40°, 60°, 90°, 120°
  • Correlated Colour Temperature (CCT): 2200K–7000K
  • IP67 rating for dust and water protection
  • LED: Philips LUMILEDs 3030 or 5050
  • Luminous efficacy: 140 lm/W
  • Power factor >0.95; optional 0-10V dimming
  • Housing: copper-free aluminium with tempered glass
  • IK07 (without wire guard) / IK09 (with wire guard)
  • Operating temperature: -20°C to +45°C
  • Lifespan: up to 80,000 hours


Technical specifications
  • Product SKU: JNFL-ATEX-FSeries2 (150W)
  • Input voltage: AC 120–277V, 50/60Hz; DC 36V
  • Input frequency: 50/60Hz
  • Total lumens: 19500 lm; Efficacy: 140 lm/W
  • CRI: >70
  • Dimensions (H×W×L): 103×270×380 mm
  • Net weight: 12.5 kg
  • Temperature class: T6; Gas group: IIC
  • Protection type: Ex eb mb; Zone classification: Zone 1 & 2
  • IK rating: IK07 (no guard) / IK09 (with wire guard)
  • Working humidity: 10–95% RH
  • Lifespan: 80,000 hours


Packaging & shipping
  • Product dimensions (mm): 103×270×380
  • Net weight (kg): 12.5
  • Export carton dimensions (mm): 386×330×220
  • Products per carton: 1
  • Export carton gross weight (kg): 14.5


Certifications & compliance
  • ATEX: II 2 G Ex db IIB T6...T4 Gb; II 2 D Ex tb IIIC T80°...120°C Db IP66; Ex db eb variants
  • IECEx: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db
  • UL: Class I Division 2 (Groups A–D); Zone 1 listings; Class II Division 1 (Groups E–G)
  • RETLAP: Esquema 5 RETILAP


Applications
  • Oil & gas platforms, refineries and pipelines
  • Chemical and petrochemical plants
  • Paint shops, solvent handling areas
  • Bulk solids handling, grain and flour mills (dust zones)
  • Shipboard, offshore and marine classified locations

Catalogs

No catalogs are available for this product.

See all of JNLED‘s catalogs
Go to the JNLED website for more information

Other JNLED products

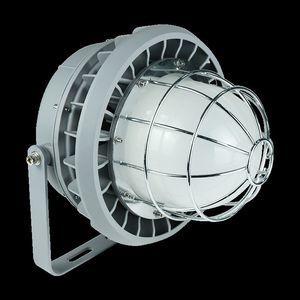

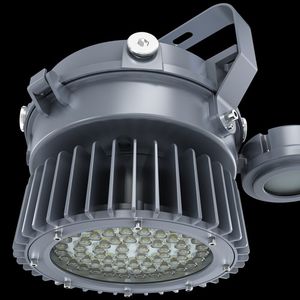

ATEX explosion proof LED lights
