ATEX floodlight JN-HB-ATEX-BSERIES3
IP67explosion-proofLED

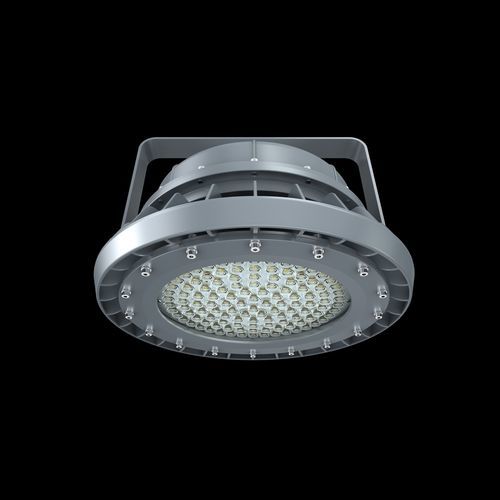

ATEX floodlight - JN-HB-ATEX-BSERIES3 - JNLED - IP67 / explosion-proof / LED
ATEX floodlight - JN-HB-ATEX-BSERIES3 - JNLED - IP67 / explosion-proof / LED
ATEX floodlight - JN-HB-ATEX-BSERIES3 - JNLED - IP67 / explosion-proof / LED - image - 2
ATEX floodlight - JN-HB-ATEX-BSERIES3 - JNLED - IP67 / explosion-proof / LED - image - 3
ATEX floodlight - JN-HB-ATEX-BSERIES3 - JNLED - IP67 / explosion-proof / LED - image - 4
ATEX floodlight - JN-HB-ATEX-BSERIES3 - JNLED - IP67 / explosion-proof / LED - image - 5
ATEX floodlight - JN-HB-ATEX-BSERIES3 - JNLED - IP67 / explosion-proof / LED - image - 6
Add to favorites
Compare this product

Characteristics

Protection class
ATEX, IP67, explosion-proof
Light source
LED
Application
industrial, for factory
Interior/exterior use
outdoor
Type
pole-mounted, hanging
Shape
round
Dimmable
dimmable
Other characteristics
high-efficiency, IK10, energy-saving, IK08
Height

Max.: 176 mm
(7 in)

Min.: 176 mm
(7 in)

Length

Max.: 370 mm
(15 in)

Min.: 370 mm
(15 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 120 W
(0.16 hp)

Min.: 120 W
(0.16 hp)

Luminous flux

Max.: 16,000 lm

Min.: 16,000 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Overview
  • ATEX-certified explosion-proof LED luminaire for hazardous areas (Zone 1 & 2), delivering 16,000 lm at 120 W with high ingress protection (IP67) and multiple mounting options. Suitable for industrial and petrochemical installations requiring certified lighting solutions.


Features
  • Emergency back-up battery available (backup time: 3 hours)
  • Mounting options: ceiling, wall, hook pendant, pole pendant, ceiling by opening LED driver box, arm mounting by opening LED driver box, stanchion mounting
  • Beam angles: 30°, 60°, 90°, 120°
  • Dimming: 0-10V dimming capability
  • High luminous efficacy and long lifespan (80,000 hours)


Technical specifications
  • Product SKU: JN-HB-ATEX-BSeries3 (120W)
  • Power consumption: 120 W
  • Input voltage: 200–250 V AC (Zone 1, 2); 120–277 / 277–480 VAC (North America)
  • Input frequency: 50 / 60 Hz
  • Light colour: 2200K–7000K
  • LED type: SMD
  • Total luminous flux: 16,000 lm
  • Luminous efficacy: 140 lm/W
  • Power factor: >0.95
  • IK impact rating: IK08 (glass cover); IK10 with wire guard
  • Housing colour: Grey
  • Housing material: Copper-free aluminium
  • Warranty period: 5 years
  • IP rating: IP67
  • Color Rendering Index (CRI): >70
  • Beam angle: 30°, 60°, 90°, 120°
  • Dimming capability: 0-10V
  • ATEX standard: II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db
  • IECEx standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85°C...T100°C Db
  • UL standard: Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
  • Retilap standard: Esquema 5 RETILAP
  • Other standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
  • Fixture shape: Round
  • Fixture height: 176 mm
  • Fixture width: 270 mm
  • Fixture length: 370 mm
  • Net weight: 8.2 kg
  • Temperature class: T6
  • Gas group: IIC
  • Protection type: Ex eb mb
  • Zone classification: Zone 1 & 2
  • Operating temperature range: -20°C to +45°C
  • Operating humidity range: 10–95% RH
  • Lifespan: 80,000 hours
