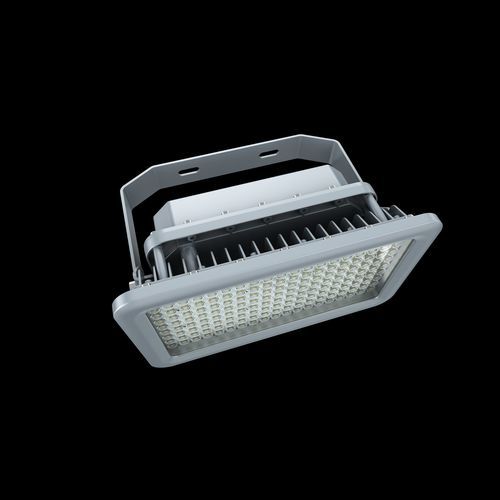

IP67 floodlight JNFL-ATEX-ASERIESA1

explosion-proofATEXLED

This ATEX-certified, explosion-proof LED luminaire from the ASeries family is engineered for hazardous locations (Zone 1 & 2) and heavy industrial or offshore environments.

Key features

• Optional emergency back-up battery (back-up time: 3 hours)
• Available mounting methods:
  • Ceiling mounting
  • Wall mounting
  • Hook pendant
  • Pole pendant
  • Diagonal pole mounting
  • Arm mounting
  • Stanchion 90°
  • Stanchion 25°
  • Wall mounting with junction box (90°)
  • Wall mounting with junction box (25°)
• IP67 ingress protection, IK08 impact rating (glass cover)
• IK10 with optional wire guard
• Non-dimmable, wide CCT range

Technical specifications

• Product SKU: JNFL-ATEX-ASeriesA1 (100W)
• Power consumption: 100 W
• Light output: 14,000 lm
• Luminous efficacy: 140 lm/W
• Input voltage: 200–250 VAC (Zone 1, 2); 120–277 / 277–480 VAC (North America)
• Input frequency: 50 / 60 Hz
• Light color (CCT): 2200K–7000K
• LED type: SMD
• Power factor: >0.95
• Color rendering index (CRI): >70
• Beam angles: 40°, 60°, 90°, 120°
• Fixture dimensions (H×W×L): 162 × 270 × 320 mm
• Net weight: 6.95 kg
• Housing: copper-free aluminium, tempered glass
• Housing colour: Grey
• IK rating: IK08 (glass); IK10 with wire guard
• IP rating: IP67
• Operating temperature: -20°C to +45°C
• Operating humidity: 10–95% RH
• Lifespan: 80,000 hours
• Dimming: Non-dimmable

Certifications & compliance

• ATEX: II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T6…T80°C...T100°C Db; II 3 G Ex ec IIC T6...T3 Gc; II 2 D Ex tb IIIC T85℃...T103℃ Db
• IECEx: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db; Ex ec IIC T6...T3 Gc; Ex tb IIIC T85°C...T100°C Db
• UL: Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
• Other standards: RETILAP Esquema 5, UL1598, UL1598A, UL924, ETL, DLC, ABS

Applications

• Hazardous areas: Zone 1 & 2
• Oil & gas platforms, refineries and petrochemical plants
• Offshore installations and marine environments
• Industrial sites requiring IP67 and explosion protection

Ordering information

• SKU: JNFL-ATEX-ASeriesA1 (100W). Other wattages and configurations available on request
• Warranty: 5 years
• Contact supplier for certified documentation, wiring options and mounting accessories
