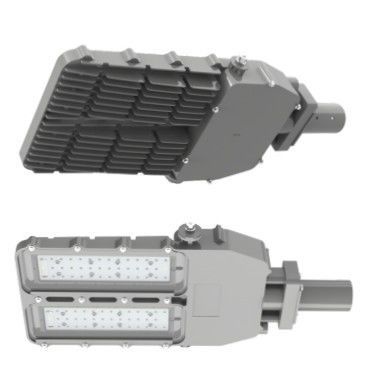

Urban lamp post JN-ATEX-STREETLIGHTSERIES1

contemporarystainless steelLED

Short description
ATEX-certified explosion-proof LED streetlight for Zone 1 & 2, stainless steel fasteners included.

Product Overview
The JN-ATEX-StreetlightSeries1 is a 150W LED luminaire engineered for hazardous industrial environments (Zone 1 & 2). It features an ADC12 aluminium housing, IP67 ingress protection, selectable beam angles and colour temperatures, and a long rated lifespan suitable for continuous operation.

Key specifications

• SKU: JN-ATEX-StreetlightSeries1 (150W)
• Power Consumption: 150 W
• Input Voltage: AC120-277V, 50/60Hz
• Input Frequency: 50/60Hz
• Light Color: 2700K–6500K
• LED Type: SMD
• Total Lumens Output: 21,000 lm
• Luminous Efficacy: 130 lm/W
• Power Factor: >0.95
• IP Rating: IP67
• IK Rating: IK07 (without wire guard); IK09 with wire guard
• Housing Material: ADC12 aluminium, grey
• Fixture Dimensions (H×W×L): 72 × 270 × 550 mm
• Net Weight: 10.5 kg
• Operating Temperature: -20°C to +45°C
• Humidity Range: 10–95% RH
• Lifespan: 80,000 hours
• Beam Angles: 40°, 60°, 90°, 120°
• Dimming: 0-10V optional
• Warranty: 5 years

Certifications & Standards

• ATEX: Zone 1 II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T95°C...T125°C Db IP; Zone 2 II 3G Ex ec mb IIC T6...T4 Gc; II 2D Ex tb IIIC T80°C...T125°C
• IECEx: Zone 1 Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T95°C...T125°C Db IP; Zone 2 Ex ec mb IIC T6...T4 Gc; Ex tb IIIC T80°C...T125°C
• UL: Class I Division 2 (Groups A–D); Class II Division 1 (Groups E–G); Class II Division 2 (Groups F–G); Class III
• RETILAP: Esquema 5
• Other: UL1598, UL1598A, UL924, ETL, ABS

Packaging & Shipping

• Product Dimensions (mm): 72×270×550
• Net Weight (kg): 10.5
• Export Carton Dimensions (mm): 692×388×125
• Products per Carton: 1
• Export Carton Gross Weight (kg): 10.5

Installation & Maintenance

• Supplied with stainless steel fasteners
• Optional 0-10V dimming; wire guard available to increase IK to IK09
• Recommended ambient temperature range: -20°C to +45°C
• Maintenance: periodic cleaning and inspection; replace driver/LED modules per service schedule

Applications

• Hazardous-area perimeter and roadway lighting in oil & gas, petrochemical and chemical plants
• Offshore platforms, refineries and storage terminals
• Any Zone 1/2 or classified area requiring ATEX/IECEx certified lighting
