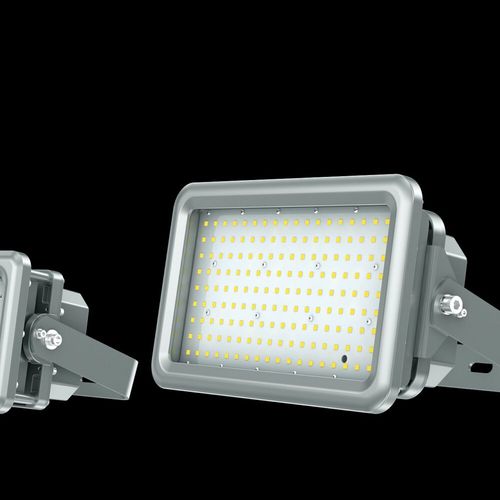

IP67 floodlight JNFL-ATEX-ASERIESA2

ATEXLEDindustrial

Short description
Available with emergency back-up battery (back-up time: 3 hours). Available mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, diagonal pole mounting, arm mounting, stanchion 90°, stanchion 25°, wall mounting with junction box (90°), wall mounting with junction box (25°).

Features

• Emergency back-up battery available — back-up time: 3 hours
• Multiple mounting methods for flexible installation: ceiling, wall, hook pendant, pole pendant, diagonal pole, arm, stanchion 90° and 25°, wall mounting with junction box (90° / 25°)

Product Specifications (table)

• Product SKU: JNFL-ATEX-ASeriesA2 (60W)
• Power Consumption: 60 W
• Input Voltage: 200-250 VAC (Zone 1, 2); 120-277 / 277-480 VAC (North America)
• Input Frequency: 50/60 Hz
• Light Color: 2200K–7000K
• LED Type: SMD
• Total Lumens Output: 8400 lm
• Luminous Efficacy: 140 lm/W
• Power Factor: >0.95
• IK Impact Rating: IK08 (glass cover); IK10 with wire guard
• Housing Colour: Grey
• Housing Material: Copper-free aluminium, tempered glass
• Warranty Period: 5 years
• IP Rating: IP67
• Color Rendering Index (CRI): >70
• Beam Angles: 40°, 60°, 90°, 120°
• Dimming Capability: Non-dimmable
• ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb, II 2 D Ex tb IIIC T6…T80°C...T100°C Db, II 3 G Ex ec IIC T6...T3 Gc, II 2 D Ex tb IIIC T85℃...T103℃ Db
• IECEx Standard: Ex eb mb IIC T6...T4 Gb, Ex tb IIIC T80°C...T100°C Db, Ex ec IIC T6...T3 Gc, Ex tb IIIC T85°C...T100°C Db
• UL Standard: Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
• Retilap Standard: Esquema 5 RETILAP
• Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS
• Fixture Shape: Rectangular
• Fixture Dimensions (HxWxL): 166 × 270 × 250 mm
• Net Weight: 4.15 kg
• Temperature Class: T6
• Gas Group: IIC
• Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2
• Working Temperature Range: -20°C to +45°C
• Working Humidity Range: 10–95% RH
• Lifespan: 80,000 hours

Technical specifications

• Emergency back-up: optional, 3 hours
• Mounting options: ceiling, wall, hook pendant, pole pendant, diagonal pole, arm, stanchion 90° / 25°, wall with junction box (90° / 25°)
• Electrical: 200–250 VAC (Zone 1,2) or 120–277 / 277–480 VAC for North America; 50/60 Hz
• Optical: 8400 lm, 140 lm/W, CRI >70, color temperature 2200K–7000K
• Mechanical: 166 × 270 × 250 mm, 4.15 kg; copper-free aluminium housing, tempered glass cover
• Environmental & safety: IP67, IK08 (IK10 with guard), operating -20°C to +45°C, Zone 1 & 2 certified
