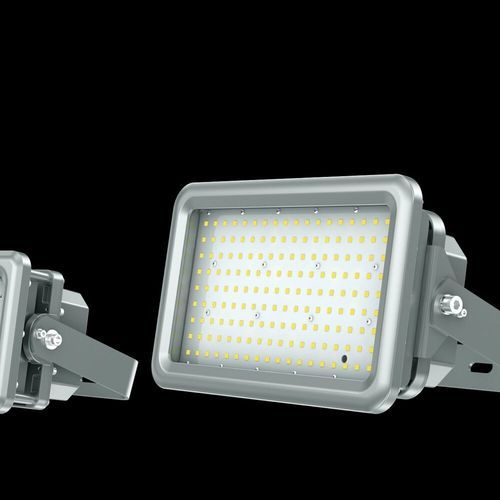

ATEX floodlight JNFL-ATEX-ASERIESA1IP67explosion-proofATEX zone 2
Add to favorites
Compare this product
Characteristics
- Protection class
- ATEX, IP67, explosion-proof, ATEX zone 2
- Light source
- LED
- Application
- industrial
- Shape
- rectangular
- Dimmable
- not dimmable
- Other characteristics
- IK08, IK10
- Height
Max.: 162 mm
(6 in)Min.: 162 mm
(6 in)- Length
Max.: 320 mm
(13 in)Min.: 320 mm
(13 in)- Width
Max.: 270 mm
(11 in)Min.: 270 mm
(11 in)- Power
Max.: 100 W
(0.14 hp)Min.: 100 W
(0.14 hp)- Luminous flux
Max.: 14,000 lm
Min.: 14,000 lm
- Color temperature
Max.: 7,000 K
Min.: 2,200 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description
Overview
Robust ATEX-certified explosion-proof LED luminaire designed for hazardous areas. Suitable for Zone 1 & 2 environments, with multiple international certifications and selectable optics and colour temperatures to fit industrial installations.
Key features
Technical specifications
Robust ATEX-certified explosion-proof LED luminaire designed for hazardous areas. Suitable for Zone 1 & 2 environments, with multiple international certifications and selectable optics and colour temperatures to fit industrial installations.
Key features
- Available with emergency back-up battery (back-up time: 3 hours)
- Available mounting methods:
- ceiling mounting
- wall mounting
- hook pendant
- pole pendant
- diagonal pole mounting
- arm mounting
- stanchion 90°
- stanchion 25°
- wall mounting with junction box (90°)
- wall mounting with junction box (25°)
Technical specifications
- Product SKU: JNFL-ATEX-ASeriesA1 (100W)
- Power Consumption: 100 W
- Input Voltage: 200-250 VAC (Zone 1, 2); 120-277 / 277-480 VAC (North America)
- Input Frequency: 50/60 Hz
- Light Color: 2200K-7000K
- LED Type: SMD
- Total Lumens Output: 14,000 lm
- Luminous Efficacy (lm/W): 140
- Power Factor: >0.95
- IK Impact Rating: IK08 (glass cover)
- Housing Colour: Grey
- Housing Material: Copper-free aluminium, tempered glass
- Warranty Period (Years): 5
- IP Rating: IP67
- Color Rendering Index (CRI): >70
- Beam Angle (°): 40°, 60°, 90°, 120°
- Dimming Capability: Non-dimmable
- ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T6…T80°C...T100°C Db; II 3 G Ex ec IIC T6...T3 Gc; II 2 D Ex tb IIIC T85℃...T103℃ Db
- IECEx Standard: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db; Ex ec IIC T6...T3 Gc; Ex tb IIIC T85°C...T100°C Db
- UL Standard: Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
- Retilap Standard: Esquema 5 RETILAP
- Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS
- Fixture Shape: Rectangular
- Fixture Height (mm): 162
- Fixture Width (mm): 270
- Fixture Length (mm): 320
- Net Weight (kg): 6.95
- Temperature Class: T6
- Gas Group: IIC
- Protection Type: Ex eb mb
- Zone Classification: Zone 1 & 2
- IK Rating with Wire Guard: IK10 (with wire guard)
- Working Temperature Range: -20°C to +45°C
- Working Humidity Range: 10-95% RH
- Lifespan (Hours): 80,000 hours
- Packaging - Product Dimensions (mm): 162×270×320
- Packaging - Net Weight (kg): 6.95
- Packaging - Export Carton Dimensions (mm): 375×340×215
- Packaging - Products per Carton: 1
- Packaging - Export Carton Gross Weight (kg): 7.9
