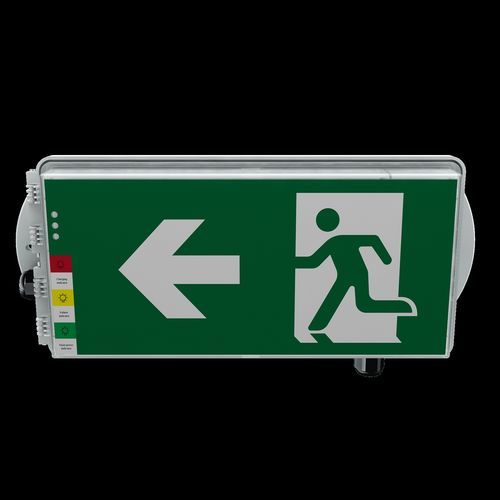

Ceiling emergency light JN-ATEX-EXIT2SERIES

wall-mountedhangingrectangular

Short description
This ATEX-certified explosion-proof LED exit and emergency luminaire JN-ATEX-Exit2Series is designed for hazardous areas (Zone 1 & 2) and offers reliable evacuation/signage lighting with selectable color temperatures from 2700K to 7000K. The luminaire supports wall, ceiling and pendant mounting, features 3-hour emergency backup and customizable label content for multilingual exit signs. Robust IP66/IK08 construction with optional wire guard (IK10) makes it suitable for corrosive and demanding industrial environments.

Features

• Applications: exit signage, emergency lighting, escape route illumination
• Mounting: wall, ceiling, pendant
• 3 hours emergency backup operation
• Optional central locking and wire guard (wire guard increases IK rating to IK10)
• Cable entry: M25×1.5 and 3/4" NPT
• Customisable labels and multilingual signage options
• Certified: ATEX, IECEx, UL, RETILAP; ABS 1000h salt spray tested

Product specifications (table)
Product SKU: JN-ATEX-Exit2Series
Power Consumption: 20 W
Input Voltage: AC100–277V, 50/60Hz; DC12–36V
Input Frequency: 50/60Hz
Light Color: 2700K–7000K
LED Type: SMD
Total Lumens Output: 2800 lm
Luminous Efficacy: 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (IK10 with wire guard)
Housing Colour: Grey
Housing Material: Glass fibre reinforced polyester resin/PC
Warranty Period: 5 years
IP Rating: IP66
Color Rendering Index: >70
Beam Angle: 30°, 60°, 90°, 120°
Dimming Capability: Non-dimmable
ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db
IECEx Standard: E db eb mb q IIC T5/T6 Gb; Ex tb IIIC 80°C/95°C Db
UL Standard: Class I Division 2 (A,B,C,D); Class I Zone 1 AEx eb mb IIC T6...T4 Gb; Class II Division 1 (E,F,G)
Retilap Standard: Esquema 5 RETILAP
Other Standards: ABS certified 1000 hours salt spray
Fixture Shape: Rectangular
Dimensions (HxWxL): 99 × 270 × 476 mm
Net Weight: 4.32 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
Operating Temperature: -20°C to +45°C
Operating Humidity: 10–95% RH
Lifespan: 80,000 hours

Technical specifications

• Power: 20 W
• Operating voltages: AC100–277V (50/60Hz) or DC12–36V
• Luminous flux: 2800 lm
• Efficacy: 140 lm/W
• Correlated Color Temperatures: 2700K–7000K
• LED: SMD
• Ingress protection: IP66
• Impact rating: IK08 (IK10 with guard)
• Housing: Glass fibre reinforced polyester resin/PC, grey
• Available beam angles: 30°, 60°, 90°, 120°
• Dimming: non-dimmable
• Certifications: ATEX, IECEx, UL, RETILAP, ABS salt spray
• Dimensions: 99×270×476 mm
• Weight: 4.32 kg
• Operating temperature: -20°C to +45°C
• Relative humidity: 10–95% RH
• Lifetime: 80,000 h
• Warranty: 5 years
