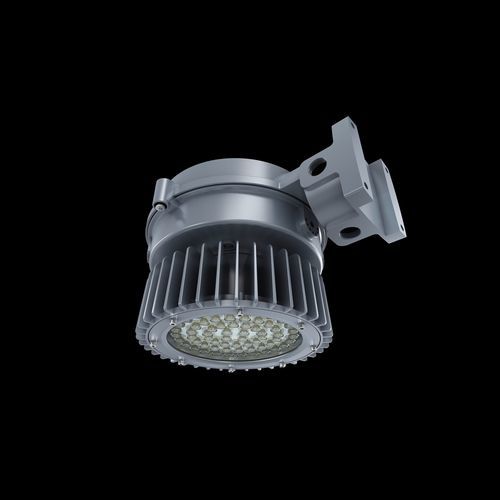

Explosion-proof floodlight JNHB-ATEX-GSERIES2

IP66ATEXATEX zone 2

Short description
ATEX-certified explosion-proof LED luminaire for hazardous areas (Zone 1 & 2). Round housing, 200 W nominal power with 26,000 lm output (140 lm/W), selectable color temperature 2700K–6500K. Available mounting: bracket, ceiling, wall, pole. Optional microwave motion sensor. Suitable for oil & gas, chemical and industrial installations where certified explosion protection is required.

Product Specifications
Product SKU: JNHB-ATEX-GSeries2 (200W)
Power Consumption: 200 W
Input Voltage: AC100-277V, AC220-480V
Input Frequency: 50/60 Hz
Light Color: 2700K–6500K
LED Type: Philips Lumileds
Total Lumens Output: 26,000 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08 (glass cover)
Housing Colour: Grey
Housing Material: Copper-free aluminium, tempered glass
Warranty Period (Years): 5
IP Rating: IP66
Color Rendering Index: >70
Beam Angle (°): 30°, 60°, 90°, 120°
Dimming Capability: Non-dimmable
ATEX Standard: II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db
IECEx Standard: Ex xR IIC T6...T4 Gc; Ex tb IIIC T80°C...T130°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
Retilap Standard: Esquema 5 RETILAP
Fixture Shape: Round
Fixture Height (mm): 228 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 429 mm
Net Weight (kg): 12.6 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with wire guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10–95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 228.5 × 270 × 429.3 mm
Net Weight (kg): 12.6 kg
Export Carton Dimensions (mm): 400 × 480 × 300
Products per Carton: 1
Export Carton Gross Weight (kg): 15 kg
Fixture Height (mm): 228
Fixture Width (mm): 270
Fixture Length (mm): 429

Key features / Technical specifications

• Power: 200 W
• Lumens: 26,000 lm
• Efficacy: 140 lm/W
• Voltage: AC100-277V, AC220-480V
• Frequency: 50/60 Hz
• Color Temperature: 2700K–6500K
• LED: Philips Lumileds
• IP Rating: IP66
• IK Rating: IK08 (glass), IK10 with wire guard
• Housing: Copper-free aluminium with tempered glass
• Dimensions: 228 × 270 × 429 mm
• Net weight: 12.6 kg
• Operating temperature: -20°C to +45°C
• Humidity: 10–95% RH
• Lifespan: 80,000 hours
• Certifications: ATEX, IECEx, UL, RETILAP (full details in specifications)
