Pole-mounted light fixture JN-ATEX-STREETLIGHTSERIES2
LEDrectangularIP67

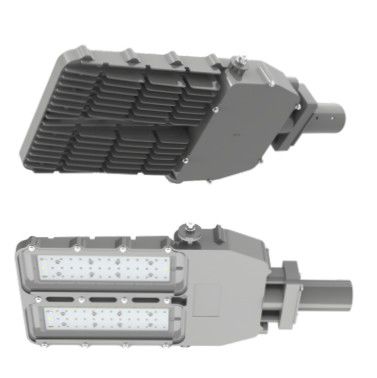

Pole-mounted light fixture - JN-ATEX-STREETLIGHTSERIES2 - JNLED - LED / rectangular / IP67
Pole-mounted light fixture - JN-ATEX-STREETLIGHTSERIES2 - JNLED - LED / rectangular / IP67
Pole-mounted light fixture - JN-ATEX-STREETLIGHTSERIES2 - JNLED - LED / rectangular / IP67 - image - 2
Pole-mounted light fixture - JN-ATEX-STREETLIGHTSERIES2 - JNLED - LED / rectangular / IP67 - image - 3
Pole-mounted light fixture - JN-ATEX-STREETLIGHTSERIES2 - JNLED - LED / rectangular / IP67 - image - 4
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Type
pole-mounted
Light source
LED
Shape
rectangular
Protection class
IP67, explosion-proof, ATEX
Interior/exterior use
outdoor
Application
road, industrial
Material
aluminum
Color
gray
Dimmable
dimmable
Other characteristics
high-efficiency, explosion-proof, impact-resistant, ATEX
Height

Max.: 74 mm
(3 in)

Min.: 74 mm
(3 in)

Length

Max.: 415 mm
(16 in)

Min.: 415 mm
(16 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 100 W
(0.14 hp)

Min.: 100 W
(0.14 hp)

Luminous flux

Max.: 14,000 lm

Min.: 14,000 lm

Color temperature

Max.: 6,500 K

Min.: 2,700 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

ATEX-certified explosion-proof LED streetlight designed for hazardous industrial environments. Suitable for Zone 1 and Zone 2 applications, it delivers high ingress protection (IP67), selectable beam angles and optional control features for flexible installation.

Features
  • Stainless steel fasteners
  • SMD LED technology
  • Multiple beam angle options (40°, 60°, 90°, 120°)
  • Optional dimming (0-10V)
  • High luminous efficacy and long rated lifespan (80,000 hours)
  • Optional wire guard for enhanced IK impact protection


Characteristics / Technical specifications
  • Product SKU: JN-ATEX-StreetlightSeries2 (100W)
  • Power Consumption: 100 W
  • Input Voltage: AC 120-277 V, 50/60 Hz
  • Light Color (CCT): 2700K–6500K
  • LED Type: SMD
  • Total Luminous Flux: 14,000 lm
  • Luminous Efficacy: 130 lm/W
  • Power Factor: >0.95
  • IK Impact Rating: IK07 (without wire guard); IK09 (with wire guard)
  • Housing Colour: Grey
  • Housing Material: ADC12 aluminium
  • Warranty Period: 5 years
  • IP Rating: IP67
  • Color Rendering Index (CRI): >70
  • Beam Angle (°): 40°, 60°, 90°, 120°
  • Dimming Capability: 0-10V (optional)
  • ATEX Standard: ZONE 1 II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 II 3G Ex ec mb IIC T6...T4 Gc II 2D Ex tb IIIC T80°C...T125°C
  • IECEx Standard: ZONE 1 Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 Ex ec mb IIC T6...T4 Gc Ex tb IIIC T80°C...T125°C
  • UL Standard: Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II Division 2, Groups F, G; Class III
  • Retilap Standard: Esquema 5 RETILAP
  • Other Standards: UL1598, UL1598A, UL924, ETL, ABS
  • Fixture Shape: Rectangular
  • Fixture Height: 74 mm
  • Fixture Width: 270 mm
  • Fixture Length: 415 mm
  • Product Dimensions (packaging): 74.5 × 270 × 415 mm
  • Net Weight: 7.5 kg
  • Export Carton Dimensions: 820 × 260 × 190 mm
  • Products per Carton: 1
  • Export Carton Gross Weight: 7.5 kg
  • Temperature Class: T6
  • Gas Group: IIC
  • Protection Type: Ex eb mb
  • Zone Classification: Zone 1 & 2
  • Working Temperature Range: -20°C to +45°C
  • Working Humidity Range: 10-95% RH
  • Lifespan (Rated): 80,000 hours
