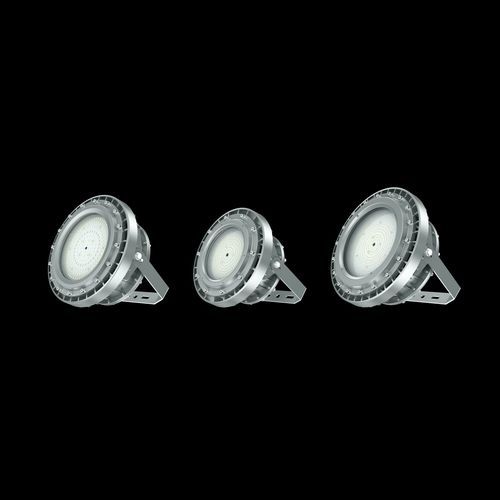

Explosion-proof floodlight JNHB-ATEXCSERIES1

ATEXLEDcommercial

ATEX-certified explosion-proof LED luminaire engineered for hazardous zones, offering multiple mounting options and an optional emergency back-up battery.

Key features

• Optional emergency back-up battery (back-up time: 3 hours)
• Available mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, diagonal pole mounting, wall mounting with junction box (90°)
• Wide beam angle options: 40°, 60°, 90°, 120°
• Adjustable light colour range: 2200K–7000K

Technical specifications

• Product SKU: JNHB-ATEXCSeries1 (100W)
• Power Consumption: 100 W
• Input Voltage: 120-277 / 150-250 VAC / 12-48 VDC
• Input Frequency: 50 / 60 Hz
• Light Colour: 2200K - 7000K
• LED Type: SMD
• Total Lumens Output: 8400 lm
• Luminous Efficacy: 140 lm/W
• Power Factor: >0.95
• IK Impact Rating: IK08 (glass cover)
• IK Rating with Wire Guard: IK10 (with wire guard)
• Housing Colour: Grey
• Housing Material: Copper free aluminium, tempered glass
• Warranty Period: 5 years
• IP Rating: IP66
• Color Rendering Index (CRI): >70
• Beam Angle: 40°, 60°, 90°, 120°
• Dimming Capability: Non-dimmable
• ATEX Standard: II 2 G Ex db llB T6...T3 Gb, II 2 D Ex tb IIC T80°C...T195°C Db
• IECEx Standard: Ex db IIB T6...T3 Gb, Ex tb IIIC T80°C...T195°C Db
• UL Standard: Class I, Division 2, Groups C, D / Class I, Division 1, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
• Retilap Standard: Esquema 5 RETILAP
• Fixture Shape: Round
• Product Dimensions (H × W × L, mm): 254 × 270 × 406
• Net Weight: 14 kg
• Working Temperature Range: -20°C to +45°C
• Working Humidity Range: 10-95% RH
• Lifespan: 80,000 hours
• Gas Group: IIC
• Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2
• Packaging — Export Carton Dimensions (mm): 479 × 470 × 345
• Packaging — Products per Carton: 1
• Packaging — Export Carton Gross Weight: 16 kg
