Ceiling emergency light JN-T-ATEX-OSERIES

roundLEDaluminium

ATEX-rated explosion-proof LED luminaire designed for hazardous-area installations. Compact round fixture offering multiple mounting options and an optional emergency back-up battery. Certified to ATEX, IECEx, UL and RETILAP for use in Zone 1 & 2 environments, providing high ingress and impact protection.

Key features

• Optional emergency back-up battery (3 hours)
• Multiple mounting methods: ceiling, pole pendant, wall with junction box (90°)
• Round compact design with tempered glass
• High ingress protection IP67 and impact rating IK08 (IK10 with wire guard)
• Non-dimmable; LED source: Philips Lumileds

Technical specifications

• Product SKU: JN-T-ATEX-OSeries (10W)
• Power consumption: 10 W
• Light output: 1200 lm
• Luminous efficacy: 120 lm/W
• Beam angle: 120°
• Correlated Color Temperature (CCT): 2200K–7000K
• Color Rendering Index (CRI): >70
• Input voltage: 100–277 VAC, 50/60 Hz
• Power factor: >0.95
• LED type: Philips Lumileds
• Material: copper-free aluminium housing, tempered glass
• Fixture shape/size: Round, Ø 270 mm × H 129 mm
• Net weight: 2.71 kg
• Lifespan: 80,000 hours
• Warranty: 5 years

Mounting & options

• Ceiling mount
• Pole pendant mount

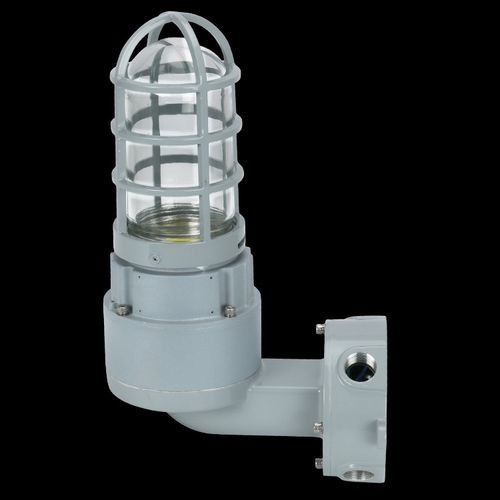

• Wall mount with 90° junction box
• Optional wire guard for increased IK rating
• Optional emergency battery pack (3 h)

Certifications & compliance

• ATEX: II 2 G Ex eb mb IIC T6/T5/T4 Gb, II 2 D Ex tb IIIC T80°C/T95°C/T130°C Db
• IECEx: Ex eb mb IIC T6/T5/T4 Gb, Ex tb IIIC T80°C/T95°C/T130°C Db
• UL: Class I, Division 2 (Groups A–D); Class II, Division 1 & 2 (Groups E–G); Class III
• RETILAP: Esquema 5 RETILAP

Operating conditions & environmental data

• Zone classification: Zone 1 & 2
• Gas group: IIC
• Protection type: Ex eb mb
• Temperature class: T6
• Working temperature: -20°C to +45°C
• Working humidity: 10–95% RH
