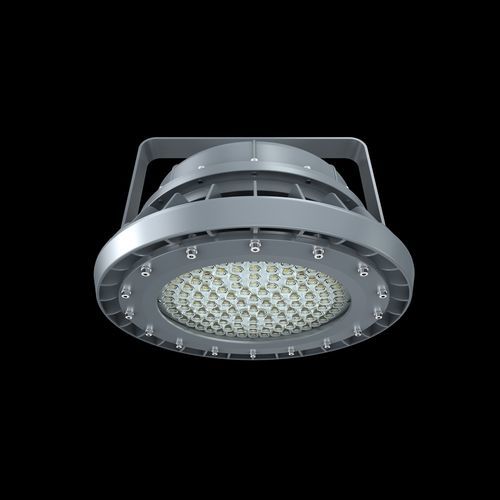

Surface-mounted light fixture JN-HB-ATEX-BSERIES3

pole-mountedhangingLED

Description
Explosion-proof LED luminaire JN-HB-ATEX-BSeries3 rated 100 W with 14,000 lm output and selectable beam angles (30°/60°/90°/120°). Designed for Zone 1 & 2 hazardous areas (gas group IIC), temperature classes T6…T3. Suitable for industrial, offshore and other hazardous environments. Optional 3-hour emergency backup battery available. Multiple mounting options adapt installation to site constraints.

Features

• Optional emergency back-up battery (3-hour autonomy)
• Multiple mounting methods: ceiling, wall, hook pendant, pole pendant, driver-box ceiling/arm mounting, stanchion
• Beam angles: 30°, 60°, 90°, 120°
• High luminous output: 14,000 lm with 140 lm/W efficacy
• Wide color temperature range: 2200K–7000K
• International certifications: RETILAP (Esquema 5), UL, IECEx, ATEX, CSA, ABS, plus UL1598/1598A/924, ETL, DLC, NSF, CB
• Dimming: 0–10V control
• Impact protection: IK08 (IK10 with wire guard)
• Operating range: -20°C to +45°C, 10–95% RH
• Expected lifespan: 80,000 hours

Product Specifications
Product SKU: JN-HB-ATEX-BSeries3 (100W)
Power Consumption: 100 W
Input Voltage: 200–250 V AC (Zone 1, 2); 120–277 / 277–480 V AC (North America)
Input Frequency: 50/60 Hz
Light Color: 2200K–7000K
LED Type: SMD
Total Lumens Output: 14,000 lm
Luminous Efficacy (lm/W): 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (glass cover)
Housing Colour: Grey
Housing Material: Copper-free aluminium
Warranty Period: 5 years
IP Rating: IP67
Color Rendering Index (CRI): >70
Beam Angle: 30°, 60°, 90°, 120°
Dimming Capability: 0–10V
ATEX / IECEx / UL Standards: see specifications (II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC ... )
Fixture Shape: Round
Dimensions (HxWxL): 176 × 270 × 370 mm
Net Weight: 8.2 kg
Temperature Class: T6 (see full spec for variants)
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10–95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 176×270×370 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 480 × 460 × 265 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 10.5 kg

Technical specifications

• Power: 100 W
• Lumens: 14,000 lm
• Efficacy: 140 lm/W
• Beam angles: 30° / 60° / 90° / 120°
• Light color range: 2200K–7000K
• IP rating: IP67
• IK rating: IK08 (IK10 with wire guard)
• Housing: Copper-free aluminium, grey
• Dimensions (HxWxL): 176 × 270 × 370 mm
• Net weight: 8.2 kg
• Operating temperature: -20°C to +45°C
• Working humidity: 10–95% RH
• Lifespan: 80,000 hours
• Certification highlights: ATEX, IECEx, UL (multiple Class/Division listings), RETILAP Esquema 5, ABS, UL1598/1598A, UL924, ETL, DLC, NSF, CB
• Dimming: 0–10V
• Mounting options: ceiling, wall, hook pendant, pole pendant, driver-box ceiling/arm mounting, stanchion
