IP67 floodlight JN-HB-ATEX-BSERIES4
ATEXexplosion-proofLED

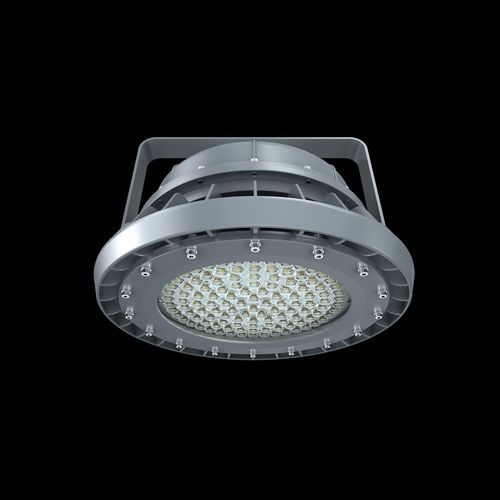

IP67 floodlight - JN-HB-ATEX-BSERIES4 - JNLED - ATEX / explosion-proof / LED
IP67 floodlight - JN-HB-ATEX-BSERIES4 - JNLED - ATEX / explosion-proof / LED
IP67 floodlight - JN-HB-ATEX-BSERIES4 - JNLED - ATEX / explosion-proof / LED - image - 2
IP67 floodlight - JN-HB-ATEX-BSERIES4 - JNLED - ATEX / explosion-proof / LED - image - 3
IP67 floodlight - JN-HB-ATEX-BSERIES4 - JNLED - ATEX / explosion-proof / LED - image - 4
IP67 floodlight - JN-HB-ATEX-BSERIES4 - JNLED - ATEX / explosion-proof / LED - image - 5
IP67 floodlight - JN-HB-ATEX-BSERIES4 - JNLED - ATEX / explosion-proof / LED - image - 6
Add to favorites
Compare this product

Characteristics

Protection class
IP67, ATEX, explosion-proof
Light source
LED
Application
industrial
Interior/exterior use
outdoor
Type
surface-mounted, pole-mounted, recessed, hanging
Shape
round
Beam type
spot
Dimmable
dimmable
Other characteristics
high-intensity, high-efficiency
Height

176 mm
(7 in)

Length

480 mm
(19 in)

Width

270 mm
(11 in)

Power

400 W

Luminous flux

42,000 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
Available with emergency back-up battery (back-up time: 3 hours).

Mounting methods
  • Ceiling mounting
  • Wall mounting
  • Hook pendant
  • Pole pendant
  • Ceiling mounting by opening the LED driver box
  • Arm mounting by opening the LED driver box
  • Stanchion mounting

Product specifications (table)
Product SKU: JN-HB-ATEX-BSeries4 (400W)
Power Consumption: 400 W
Input Voltage: 200-250V AC (Zone 1,2); 120-277/277-480VAC (North America)
Input Frequency: 50/60Hz
Light Color: 2200K-7000K
LED Type: SMD
Total Lumens Output: 42000 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08 (Glass cover)
Housing Colour: Grey
Housing Material: Copper free aliminium
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index: >70
Beam Angle (°): 30°, 60°, 90°, 120°
Dimming Capability: 0-10V
ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db
IECEx Standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85°C...T100°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
Retilap Standard: Esquema 5 RETILAP
Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
Fixture Shape: Round
Fixture Height (mm): 176 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 480 mm
Net Weight (kg): 18.8 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with Wire Guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 176×270×480mm
Export Carton Dimensions (mm): 530x530x300
Products per Carton: 1
Export Carton Gross Weight (kg): 21.5 kg

Characteristics / Technical specifications
  • Power: 400 W
  • Lumens: 42000 lm
  • Efficacy: 140 lm/W
  • Input Voltage: 200-250V AC (Zone 1,2); 120-277/277-480VAC (North America)
  • Beam angles: 30°, 60°, 90°, 120°
  • IP Rating: IP67
  • IK Rating: IK08 (IK10 with wire guard)
  • Housing: Copper free aluminium, Grey
  • Weight: 18.8 kg
  • Temperature range: -20°C to +45°C
  • Lifespan: 80,000 hours
  • Certifications: ATEX, IECEx, UL, Retilap (Esquema 5), CSA, ABS, UL1598, UL1598A, UL924, ETL, DLC, NSF, CB
