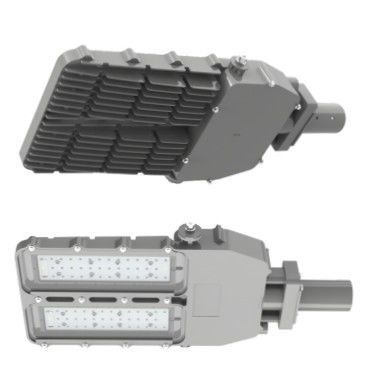

Urban lamp post JN-ATEX-STREETLIGHTSERIES1

contemporarymetalLED

Short description
ATEX/IECEx/UL-certified explosion-proof LED streetlight with ADC12 aluminium housing and stainless steel fasteners. 100 W version delivering 14,000 lm, available with multiple beam angles for use in hazardous Zone 1 and Zone 2 areas.

Features

• ATEX / IECEx / UL certified for hazardous zones
• High output: 14,000 lm with 130 lm/W efficacy
• Beam angle options: 40°, 60°, 90°, 120°
• Wide CCT range: 2700K–6500K
• IP67 ingress protection and ADC12 aluminium housing
• Optional 0-10V dimming control

Product Specifications (table form)
Product SKU: JN-ATEX-StreetlightSeries1 (100W)
Power Consumption: 100 W
Input Voltage: AC120-277V, 50/60Hz
Input Frequency: 50/60Hz
Light Color (CCT): 2700K–6500K
LED Type: SMD
Total Lumens Output: 14,000 lm
Luminous Efficacy (lm/W): 130
Power Factor: >0.95
IK Impact Rating: IK07 (without wire guard); IK09 (with wire guard)
Housing Colour: Grey
Housing Material: ADC12 Aluminium
Warranty Period: 5 years
IP Rating: IP67
Color Rendering Index (CRI): >70
Beam Angle (°): 40°, 60°, 90°, 120°
Dimming Capability: 0-10V available (optional)
ATEX Standard: ZONE 1 II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 II 3G Ex ec mb IIC T6...T4 Gc II 2D Ex tb IIIC T80°C...T125°C
IECEx Standard: ZONE 1 Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 Ex ec mb IIC T6...T4 Gc Ex tb IIIC T80°C...T125°C
UL Standard: Class I, Division 2, Groups A, B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
Other Standards: UL1598, UL1598A, UL924, ETL, ABS, RETILAP Esquema 5
Fixture Shape: Rectangular
Fixture Height (mm): 72 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 550 mm
Net Weight (kg): 10.5 kg
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10–95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping (table form)
Product Dimensions (mm): 72×270×550 mm
Net Weight (kg): 10.5 kg
Export Carton Dimensions (mm): 692×388×125 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 10.5 kg

Technical characteristics

• SKU: JN-ATEX-StreetlightSeries1 (100W)
• Power: 100 W
• Voltage: AC120-277V, 50/60Hz
• Frequency: 50/60Hz
• Light color (CCT): 2700K–6500K
• LED type: SMD
• Luminous flux: 14,000 lm
• Efficacy: 130 lm/W
• Power factor: >0.95
• IK rating: IK07 (without wire guard); IK09 with wire guard
• Housing: ADC12 aluminium, grey
• IP rating: IP67
• CRI: >70
• Beam angles: 40°, 60°, 90°, 120°
• Dimming: 0-10V optional
• Standards: ATEX / IECEx / UL / RETILAP and others (see above)
• Dimensions (H×W×L): 72×270×550 mm
• Net weight: 10.5 kg
• Operating temperature: -20°C to +45°C
• Humidity: 10–95% RH
• Lifespan: 80,000 hours
• Warranty: 5 years
