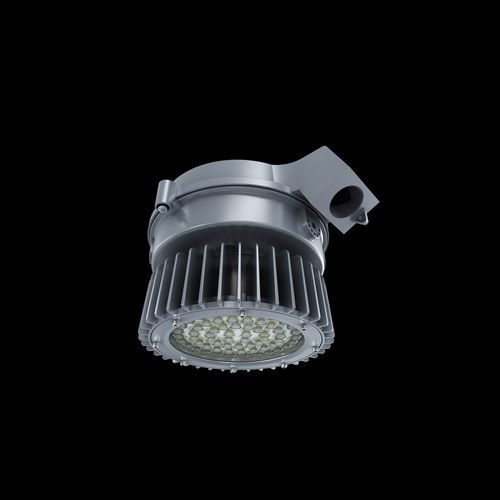

Hanging light fixture JNHB-ATEX-GSERIES1

surface-mountedLEDround

Short description
Available mounting methods: bracket ceiling mounting, ceiling mounting, wall mounting, pole mounting. Available with microwave motion sensor (optional).

Product Specifications (table)
Product SKU: JNHB-ATEX-GSeries1 (80W)
Power Consumption: 80 W
Input Voltage: AC100-277V, AC220-480V
Input Frequency: 50/60Hz
Light Color: 2700K-6500K
LED Type: Philips Lumileds
Total Lumens Output: 10400 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08 (Glass cover)
Housing Colour: Grey
Housing Material: Copper free aluminium, tempered glass
Warranty Period (Years): 5
IP Rating: IP66
Color Rendering Index: >70
Beam Angle (°): 30°, 60°, 90°, 120°
Dimming Capability: Non-dimmable
ATEX Standard: II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db
IECEx Standard: Ex xR IIC T6...T4 Gc; Ex tb IIIC T80°C...T130°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G
Retilap Standard: Esquema 5 RETILAP
Fixture Shape: Round
Fixture Height (mm): 193 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 338 mm
Net Weight (kg): 10.5 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with wire guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping (table)
Product Dimensions (mm): 193.2×270×338 mm
Net Weight (kg): 10.5 kg
Export Carton Dimensions (mm): 530x520x380
Products per Carton: 1
Export Carton Gross Weight (kg): 12.5 kg
Fixture Height (mm): 193
Fixture Width (mm): 270
Fixture Length (mm): 338

Technical features / specifications

• Power: 80 W
• Lumens: 10400 lm
• Efficacy: 140 lm/W
• Voltage: AC100-277V, AC220-480V
• Frequency: 50/60 Hz
• Light color temperature: 2700K–6500K
• LED: Philips Lumileds
• IP rating: IP66
• IK rating: IK08 (glass), IK10 with wire guard
• Housing: Copper free aluminium with tempered glass
• CRI: >70
• Beam angles available: 30°, 60°, 90°, 120°
• Dimming: Non-dimmable
• ATEX / IECEx / UL certifications: see product specifications above
• Operating temperature: -20°C to +45°C
• Working humidity: 10–95% RH
• Lifespan: 80,000 hours
• Warranty: 5 years
