ATEX floodlight JN-HB-ATEX-BSERIES2
explosion-proofIP67LED

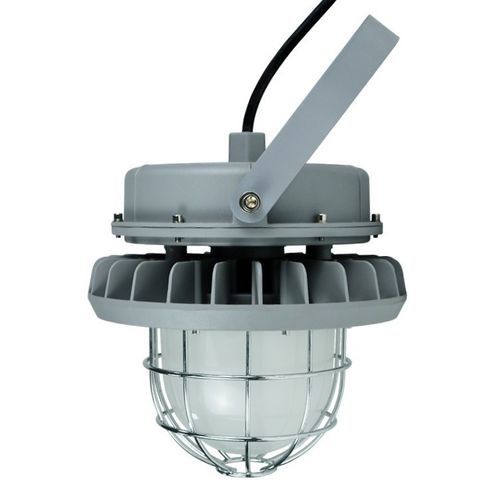

ATEX floodlight - JN-HB-ATEX-BSERIES2 - JNLED - explosion-proof / IP67 / LED
ATEX floodlight - JN-HB-ATEX-BSERIES2 - JNLED - explosion-proof / IP67 / LED
ATEX floodlight - JN-HB-ATEX-BSERIES2 - JNLED - explosion-proof / IP67 / LED - image - 2
ATEX floodlight - JN-HB-ATEX-BSERIES2 - JNLED - explosion-proof / IP67 / LED - image - 3
ATEX floodlight - JN-HB-ATEX-BSERIES2 - JNLED - explosion-proof / IP67 / LED - image - 4
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
ATEX, explosion-proof, IP67
Light source
LED
Application
for factory, industrial, for gas stations
Interior/exterior use
outdoor
Type
pole-mounted, hanging, surface-mounted
Shape
round
Dimmable
dimmable
Other characteristics
IK08, high-efficiency, IK10
Height

Max.: 129 mm
(5 in)

Min.: 129 mm
(5 in)

Length

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Width

Max.: 270 mm
(11 in)

Min.: 270 mm
(11 in)

Power

Max.: 60 W
(0.08 hp)

Min.: 60 W
(0.08 hp)

Luminous flux

Max.: 8,400 lm

Min.: 8,400 lm

Color temperature

Max.: 7,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 70 unit

Description

Short description
IP67-rated, ATEX/IECEx certified explosion-proof LED luminaire JN-HB-ATEX-BSeries2 delivering 8,400 lm at 60 W. Designed for Zone 1 & 2 hazardous areas, color temperature 2200K–7000K, expected life 80,000 hours. Optional 3-hour emergency back-up battery available.

Key features
  • Model / Series: BSeries2 (Product SKU: JN-HB-ATEX-BSeries2, 60W)
  • Power: 60 W — Total lumens: 8,400 lm — Efficacy: 140 lm/W
  • Beam angles: 30°, 60°, 90°, 120°
  • Color temperature range: 2200K–7000K — CRI >70
  • Dimming: 0–10V
  • Ingress protection: IP67 — IK08 (glass); IK10 with wire guard
  • Housing: Copper-free aluminium, grey — Fixture shape: Round
  • Lifespan: 80,000 hours — Working temperature: -20°C to +45°C — Humidity: 10–95% RH
  • Optional emergency: 3-hour back-up battery


Mounting options
  • Ceiling mounting
  • Wall mounting
  • Hook pendant
  • Pole pendant
  • Ceiling mounting by opening the LED driver box
  • Arm mounting by opening the LED driver box
  • Stanchion mounting


Technical specifications
  • Power consumption: 60 W
  • Input voltage: 200–250V AC (Zone 1,2); 120–277 / 277–480 VAC (North America)
  • Input frequency: 50/60 Hz
  • LED type: SMD
  • Luminous efficacy: 140 lm/W
  • Power factor: >0.95
  • IK rating: IK08 (glass cover); IK10 with wire guard
  • Fixture dimensions (HxWxL): 129 × 270 × 270 mm
  • Net weight: 3.5 kg
  • Temperature class: T6
  • Gas group: IIC
  • Protection type: Ex eb mb
  • Zone classification: Zone 1 & 2
  • Working temperature range: -20°C to +45°C
  • Working humidity range: 10–95% RH
  • Rated lifespan: 80,000 hours


Certifications
  • ATEX: II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T80°C...T100°C Db; others as specified
  • IECEx: Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T80°C...T100°C Db; others as specified
  • UL: Class I Division 2 (Groups A,B,C,D); Class II Division 1 & 2 (various groups); Class III
  • Retilap: Esquema 5 RETILAP
  • Other standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB


Packaging & shipping
  • Product dimensions (mm): 129 × 270 × 270
  • Net weight (kg): 3.5
  • Export carton dimensions (mm): 360 × 354 × 260
  • Products per carton: 1
  • Export carton gross weight (kg): 5
