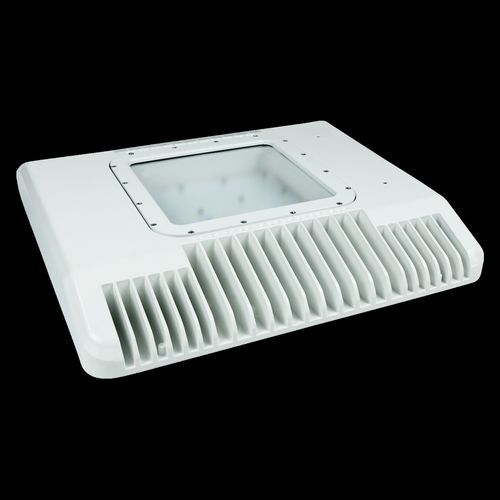

Hanging light fixture JN-C-ATEX-CANOPYSERIES

surface-mountedrecessedLED

The JNLED JN-C-ATEX-CanopySeries is an ATEX-certified, explosion-proof canopy LED luminaire designed for hazardous environments (Zone 1 & 2). It is supplied for stanchion or pendant mounting and engineered for long service life and reliable operation.

Highlights

• ATEX, IECEx and multiple regional standards compliance for gas and dust hazardous areas.
• Wide colour temperature range 2200K–7000K with Philips Lumileds LEDs for consistent light output.
• Robust ingress and mechanical protection: IP66 and IK09 (IK10 with wire guard).
• Copper-free aluminium housing with tempered glass; off-white finish for corrosion resistance.
• Rated life 80,000 hours and 5-year warranty.

Typical mounting

• Available mounting methods: stanchion mounting, pendant mounting.

Technical specifications

• Product SKU: JN-C-ATEX-CanopySeries (100W)
• Power Consumption: 100 W
• Input Voltage: 100-277VAC; 50/60Hz
• Input Frequency: 50/60Hz
• Light Color: 2200K-7000K
• LED Type: Philips Lumileds
• Total Lumens Output: 13000 lm
• Luminous Efficacy (lm/W): 140
• Power Factor: >0.95
• IK Impact Rating: IK09
• IK Rating with Wire Guard: IK10 (with wire guard)
• Housing Colour: Off-white
• Housing Material: Copper free aluminium, tempered glass
• Warranty Period (Years): 5
• IP Rating: IP66
• Color Rendering Index (CRI): >70
• Beam Angle: 120°
• Dimming Capability: Non-dimmable
• ATEX Standard: II2 G Ex eb op is IIC T5/T6 GC, II2 D Ex op is tb IIIC T80°C Db
• IECEx Standard: Ex ec op is lIC T6/T5/T4/T3 Gc, Ex op is tb IIIC T80°C/T95°C/T130°C/T195°C Db
• UL Standard: Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
• Retilap Standard: Esquema 5 RETILAP
• Fixture Shape: Square
• Fixture Height: 94 mm
• Fixture Width: 270 mm
• Fixture Length: 385 mm
• Net Weight: 4 kg
• Temperature Class: T6
• Gas Group: IIC
• Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2
• Working Temperature Range: -20°C to +45°C
• Working Humidity Range: 10-95% RH
• Lifespan (Hours): 80,000 hours
