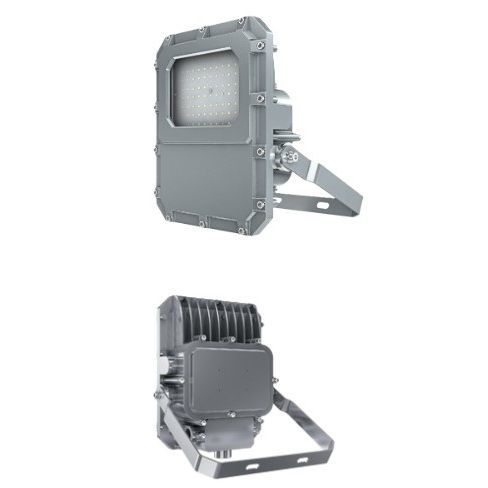

IP66 floodlight JNFL-ATEX-FSERIES1

IP67explosion-proofATEX

Short description
ATEX certified explosion-proof LED luminaire designed for hazardous industrial locations (Zone 1 & 2). Suitable for gas group IIC and dust environments; robust IP67/IP66 protection class for demanding conditions.

Features

• Power: 20 W
• Total lumens output: 2600 lm
• Beam angle options: 40°, 60°, 90°, 120°
• IP rating: IP67
• Light colour (CCT): 2200K–7000K
• LED type: Philips LUMILEDs 3030 or 5050
• Luminous efficacy: 140 lm/W
• Power factor: >0.95
• IK impact rating: IK07 (without wire guard); IK09 (with wire guard)
• Housing: Copper-free aluminium with tempered glass, colour: Grey
• Dimming capability: 0–10V (optional)
• Warranty: 5 years
• Lifespan: 80,000 hours

Product specifications (table)
Product SKU: JNFL-ATEX-FSeries1 (20W)
Power Consumption: 20 W
Input Voltage: AC120-277V, 50/60Hz; DC36V option
Input Frequency: 50/60Hz
Light Color: 2200K-7000K
LED Type: Philips LUMILEDs 3030 or 5050
Total Lumens Output: 2600 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK07 (without wire guard)
Housing Colour: Grey
Housing Material: Copper-free aluminium, tempered glass
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index: >70
Beam Angle (°): 40°, 60°, 90°, 120°
Dimming Capability: 0-10V (optional)
ATEX Standard: Flame-proof type: Gas: II 2 G Ex db IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°...120°C Db IP66; Flame-proof and increased safe type: Gas: II 2 G Ex db eb IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°C...120°C Db IP66
IECEx Standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85℃...T103℃ Db
UL Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
Retilap Standard: Esquema 5 RETILAP
Fixture Shape: Rectangular
Fixture Height (mm): 98 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 318 mm
Net Weight (kg): 8.5 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK09 (with wire guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Technical specifications

• Model: JNFL-ATEX-FSeries1
• Power: 20 W
• Lumens: 2600 lm
• Efficacy: 140 lm/W
• Beam angles: 40° / 60° / 90° / 120°
• CCT: 2200K–7000K
• LED: Philips LUMILEDs (3030 or 5050)
• Voltage: AC120–277V 50/60Hz; DC36V option
• Dimming: 0–10V (optional)
• IP rating: IP67 (suitable for harsh/hazardous environments)
• IK rating: IK07 (without guard) / IK09 (with wire guard)
• Housing: Copper-free aluminium, tempered glass; Colour: Grey
• Dimensions: 98.5 × 270 × 318 mm
• Net weight: 8.5 kg
• Certifications: ATEX, IECEx, UL, RETILAP (detailed codes in specifications)
• Zone classification: Zone 1 & 2; Gas group IIC; Temperature class T6
• Operating temp: -20°C to +45°C; Humidity: 10–95% RH
• Lifespan: ~80,000 hours
• Warranty: 5 years
