Pole-mounted light fixture JN-HB-ATEX-BSERIES3
hangingsurface-mountedLED

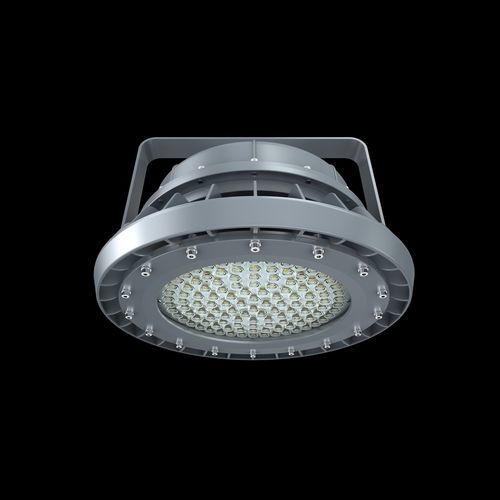

Pole-mounted light fixture - JN-HB-ATEX-BSERIES3 - JNLED - hanging / surface-mounted / LED
Pole-mounted light fixture - JN-HB-ATEX-BSERIES3 - JNLED - hanging / surface-mounted / LED
Pole-mounted light fixture - JN-HB-ATEX-BSERIES3 - JNLED - hanging / surface-mounted / LED - image - 2
Pole-mounted light fixture - JN-HB-ATEX-BSERIES3 - JNLED - hanging / surface-mounted / LED - image - 3
Pole-mounted light fixture - JN-HB-ATEX-BSERIES3 - JNLED - hanging / surface-mounted / LED - image - 4
Pole-mounted light fixture - JN-HB-ATEX-BSERIES3 - JNLED - hanging / surface-mounted / LED - image - 5
Pole-mounted light fixture - JN-HB-ATEX-BSERIES3 - JNLED - hanging / surface-mounted / LED - image - 6
Add to favorites
Compare this product

Characteristics

Type
pole-mounted, hanging, surface-mounted
Light source
LED
Shape
round
Protection class
explosion-proof, IP67, ATEX zone 2, ATEX
Application
industrial
Material
aluminum
Color
gray
Style
industrial design
Dimmable
dimmable
Number of lights
single
Other characteristics
emergency, ATEX, explosion-proof, IK10, IK08
Height

Min.: 176 mm
(7 in)

Max.: 176 mm
(7 in)

Length

Min.: 370 mm
(15 in)

Max.: 370 mm
(15 in)

Width

Min.: 270 mm
(11 in)

Max.: 270 mm
(11 in)

Power

Min.: 100 W
(0.14 hp)

Max.: 100 W
(0.14 hp)

Luminous flux

Min.: 14,000 lm

Max.: 14,000 lm

Color temperature

Min.: 2,200 K

Max.: 7,000 K

Color rendering index (CRI)

Min.: 70 unit

Max.: 100 unit

Description

Overview
Industrial ATEX-certified explosion-proof LED luminaire for Zone 1 & 2 hazardous areas. Offers multiple mounting options and an optional 3-hour emergency back-up battery for continuous operation in critical installations.

Features
  • Optional emergency back-up battery (back-up time: 3 hours)
  • Multiple mounting methods: ceiling, wall, hook pendant, pole pendant, arm or stanchion (driver box opening options)
  • Available beam angles: 30°, 60°, 90°, 120°
  • Wide colour temperature range: 2200K–7000K
  • Meets international hazardous-area and safety standards: ATEX, IECEx, UL, CSA, RETILAP (Esquema 5), ABS, UL1598, UL1598A, UL924, ETL, DLC, CB
  • High ingress protection IP67; IK08 impact on glass, IK10 with wire guard


Technical specifications
  • Product SKU: JN-HB-ATEX-BSeries3 (100W)
  • Power consumption: 100 W
  • Input voltage: 200–250 V AC (Zone 1,2); 120–277 / 277–480 VAC (North America)
  • Input frequency: 50/60 Hz
  • Light colour: 2200K–7000K
  • LED type: SMD
  • Total luminous flux: 14,000 lm
  • Luminous efficacy: 140 lm/W
  • Power factor: >0.95
  • IK impact rating: IK08 (glass cover); IK10 with wire guard
  • Housing colour: Grey
  • Housing material: Copper-free aluminium
  • Warranty period: 5 years
  • IP rating: IP67
  • Colour rendering index (CRI): >70
  • Beam angles: 30°, 60°, 90°, 120°
  • Dimming: 0–10 V
  • ATEX: II 2 G Ex eb mb IIC T6...T4 Gb / II 2 D Ex tb IIIC T80°C...T100°C Db (and variants)
  • IECEx: Ex eb mb IIC T6...T4 Gb / Ex tb IIIC T80°C...T100°C Db (and variants)
  • UL: Class I Division 2 Groups A,B,C,D; Class II Division 1 Groups E,F,G; Class II Division 2 Groups F,G; Class III
  • Retilap: Esquema 5 RETILAP
  • Other standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
  • Fixture shape: Round
  • Dimensions (HxWxL): 176 × 270 × 370 mm
  • Fixture height: 176 mm; width: 270 mm; length: 370 mm
  • Net weight: 8.2 kg
  • Export carton dimensions: 480 × 460 × 265 mm (1 unit per carton)
  • Export carton gross weight: 10.5 kg
  • Temperature class: T6
  • Gas group: IIC
  • Protection type: Ex eb mb
  • Zone classification: Zone 1 & 2
  • Operating temperature: -20°C to +45°C
  • Operating humidity: 10–95% RH
  • Lifespan: 80,000 hours
