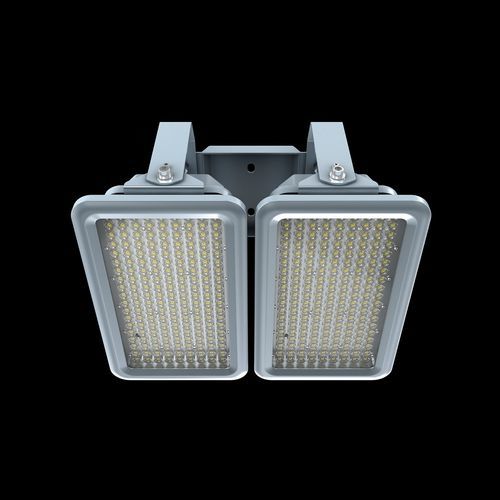

IP67 floodlight JNFL-ATEX-ASERIESA1

ATEXLEDcommercial

Short description
Available with emergency back-up battery (back-up time: 3 hours).

• Available mounting methods: ceiling mounting
• Wall mounting
• Hook pendant
• Pole pendant
• Diagonal pole mounting
• Arm mounting
• Stanchion 90°
• Stanchion 25°
• Wall mounting with junction box (90°)
• Wall mounting with junction box (25°)

Features
High-efficiency ATEX-certified LED luminaire for hazardous areas. Multiple beam angles available (40°, 60°, 90°, 120°). Wide colour temperature range from 2200K to 7000K. IK08 tempered glass cover (IK10 with optional wire guard). IP67 ingress protection. Non-dimmable. Rated lifespan up to 80,000 hours.

Product specifications (table)
Product SKU | JNFL-ATEX-ASeriesA1 (80W)
Power Consumption | 80 W
Input Voltage | 200-250VAC (Zone 1, 2); 120-277/277-480VAC (North America)
Input Frequency | 50/60Hz
Light Color | 2200K-7000K
LED Type | SMD
Total Lumens Output | 11200 lm
Luminous Efficacy (lm/W) | 140
Power Factor | >0.95
IK Impact Rating | IK08 (Glass cover)
Housing Colour | Grey
Housing Material | Copper free aluminium, tempered glass
Warranty Period (Years) | 5
IP Rating | IP67
Color Rendering Index | >70
Beam Angle (°) | 40°, 60°, 90°, 120°
Dimming Capability | Non-dimmable
ATEX Standard | II 2 G Ex eb mb IIC T6...T4 Gb, II 2 D Ex tb IIIC T6… T80°C...T100°C Db, II 3 G Ex ec IIC T6...T3 Gc, II 2 D Ex tb IIIC T85℃...T103℃ Db
IECEx Standard | Ex eb mb IIC T6...T4 Gb, Ex tb IIIC T80°C...T100°C Db, Ex ec IIC T6...T3 Gc, Ex tb IIIC T85°C...T100°C Db
UL Standard | Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
Retilap Standard | Esquema 5 RETILAP
Other Standards | UL1598, UL1598A, UL924, ETL, DLC, ABS
Fixture Shape | Rectangular
Fixture Height (mm) | 162 mm
Fixture Width (mm) | 270 mm
Fixture Length (mm) | 320 mm
Net Weight (kg) | 6.95 kg
Temperature Class | T6
Gas Group | IIC
Protection Type | Ex eb mb
Zone Classification | Zone 1 & 2
IK Rating with Wire Guard | IK10 (with Wire Guard)
Working Temperature Range | -20°C to +45°C
Working Humidity Range | 10-95% RH
Lifespan (Hours) | 80,000 hours

Technical specifications

• SKU: JNFL-ATEX-ASeriesA1 (80W)
• Power consumption: 80 W
• Input voltage: 200-250VAC (Zone 1,2); 120-277/277-480VAC (North America)
• Input frequency: 50/60Hz
• Light color: 2200K–7000K
• LED type: SMD
• Total lumen output: 11200 lm
• Efficacy: 140 lm/W
• Power factor: >0.95
• IK rating: IK08 (glass cover); IK10 with wire guard
• Housing: Copper free aluminium, tempered glass; colour: Grey
• IP rating: IP67
• CRI: >70
• Beam angles: 40°, 60°, 90°, 120°
• Dimming: Non-dimmable
• ATEX / IECEx / UL / RETILAP compliance: standards as listed above
• Fixture dimensions (H×W×L): 162×270×320 mm
• Net weight: 6.95 kg
• Operating temperature: -20°C to +45°C
• Operating humidity: 10–95% RH
• Lifespan: ~80,000 hours
