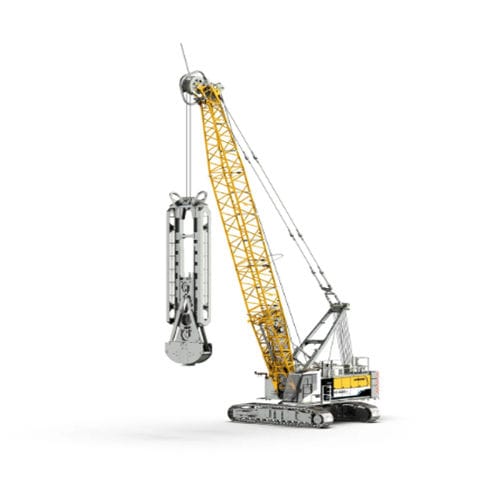

ブームクレーン HS 8100.2

クローラー式ハンドリング用持ち上げ用

Overview
The all-electric concept of the HS 8100.2 dual power offers flexible drive variants and application options. The centrepiece of the machine is an integrated battery with which the entire drive system runs. The battery can be charged in different ways. With 125 A, the duty cycle crawler crane runs entirely on site power. With 32 A or 64 A, part of the energy comes from the power grid, the rest from an integrated diesel generator that requires no additional space. Without a charging infrastructure, the generator takes over the entire drive. Thanks to the battery, the duty cycle crawler crane can be autonomously assembled or disassembled, or travel over a distance of around 400 metres.

Key features

• All-electric concept with integrated battery powering the entire drive system
• Multiple charging/drive variants: full site power (125 A), mixed grid + integrated diesel generator (32 A / 64 A), or diesel-only if no charging infrastructure
• Integrated diesel generator requires no additional space
• Autonomous assembly/disassembly and self-travel capability (approx. 400 m)
• Designed for duty cycle crawler crane applications

Main applications

• Mechanical slurry wall grab
• Material handling grab
• Dragline bucket operations
• Lifting operations

Product attributes (summary)

• Max. lifting capacity: 100 t
• Engine power: 450 kW
• Max. winch line pull: 2 x 295 kN
• Max. main boom: 59.00 m
• Boom length in grab operation: 32.00 m
• Boom length in dragline operation: 29.00 m
• Operating weight: 89 t
• Travel speed: 1.28 km/h
• Max. depth (dragline operation): 15.00 m
• Max. capacity of dragline bucket: 4.60 m³
• Max. capacity of clamshell: 7.00 m³
• At radius: 12.00 m
• Min. transport width: 3,500 mm
• Min. transport height: 3,180 mm
• Min. transport weight: 40 t

Technical dataMax. lifting capacity: 100 t
Min. transport width: 3,500 mm
Min. transport height: 3,180 mm
Min. transport weight: 40 t
Engine power: 450 kW
Max. winch line pull: 2 x 295 kN
Max. main boom: 59.00 m
Boom length in grab operation: 32.00 m
Boom length in dragline operation: 29.00 m
Operating weight: 89 t
Travel speed: 1.28 km/h
Max. depth dragline operation: 15.00 m
Max. capacity of dragline bucket: 4.60 m³
Max. capacity of clamshell: 7.00 m³
At radius: 12.00 m

Caractéristiques / spécifications techniques

• Drive concept: integrated battery for all-electric operation; option to combine grid power and integrated diesel generator
• Charging/drive modes: full site power (125 A); mixed supply (32 A / 64 A + diesel generator); diesel-only mode
• Autonomous functions: assembly/disassembly capability and self-travel up to approx. 400 m
• Main use cases: slurry wall installation (grab), material handling, dragline dredging/excavation, lifting
• Nominal engine power: 450 kW
• Maximum lifting capacity: 100 t
