Foam insulation 3D|CORE™ PET
thermalacousticPET foam

foam insulation
foam insulation
foam insulation
foam insulation
foam insulation
foam insulation
foam insulation
foam insulation
Add to favorites
Compare this product


Characteristics

Type
thermal, acoustic
Material
PET foam, thermoplastic foam
Format
foam
Location
interior
Use
wall, for roof, for doors
Technical characteristics
high-performance
Options
lightweight, recyclable, vacuum
Thermal conductivity

0.035 W/(m.K)

Thickness

Min.: 3 mm (0.12 in)

Max.: 29 mm (1.14 in)

Length

Min.: 1,010 mm (40 in)

Max.: 1,020 mm (40 in)

Width

Min.: 400 mm (16 in)

Max.: 410 mm (16 in)

Description

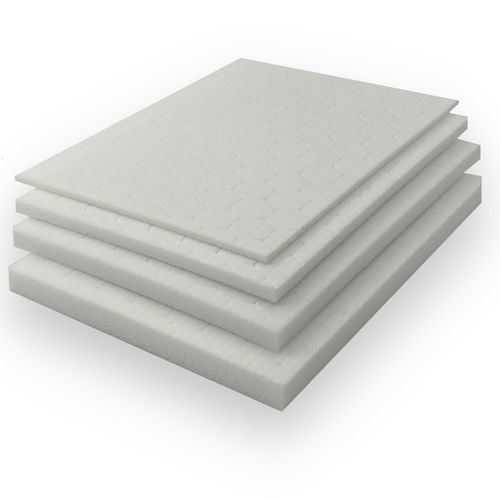

The 3D|CORE™ PET is a closed-cell, thermoplastic and recyclable high-performance rigid foam with excellent technical properties. This core is an allrounder and is particularly suitable for the construction of high-strength, lightweight components with high permanent loads. The integrated honeycomb structure creates more flexibility and simplifies handling in production. Properties of 3D|CORE™ PET: - Available density: 150 kg/m³ - Excellent fatigue resistance - Excellent long-term thermal stability up to 100°C - Very high processing temperature up to 180°C - Closed-cell foam (no water absorption, no reexpansion, no outgassing) - Long lasting - no rotting - Easy processing with all known resin systems and processes - Very high chemical resistance - Homogenous connection of all components - Excellent surface adhesion (connection between the surfaces and core) - Highly consistent material properties - Good thermal insulation - Integrated flowing aid - Low resin absorption Applications of 3D|CORE™ PET in the architectural industry: - housings - panels - design elements - facades - roofs - coverings Suitable processes: - Hand laminate - Vacuum infusion - RTM - Resin Transfer Moulding (VARTM, LRTM and HP-RTM) - Wet pressing - Autoclave - Prepreg - SMC
