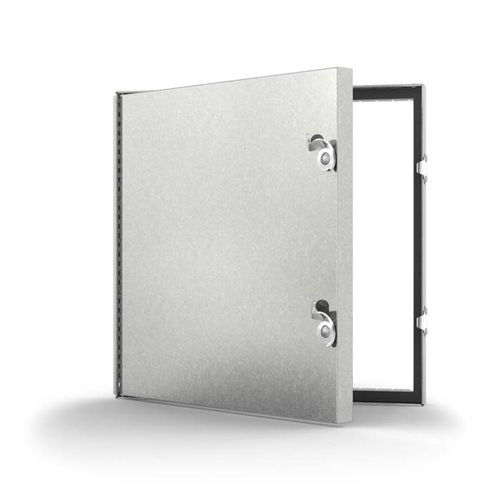

Wall access hatch HD-5070

squaregalvanised steelaluminum

Application Assures a tight seal without obstruction in the air system Product Features Insulated door panel, along with the gasketing between the door and frame 5/8” notched knock over tabs on the inside of the frame provide for easy installation These doors are designed for use in LOW to medium pressure up to 3” static W.G. Options Aluminum, stainless steel, cylider lock & key, HASP + staple, L-handle HD-5070 Duct Access Door Specifications: Material: Galvanized steel, double panel Door: 24 gauge Mounting Frame: 24 gauge with 5/8" notched knock over tabs Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and also between frame and duct Hinge: Continuous aluminum piano hinge Insulation: Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1". Latch: Self tightening, hand operated cam latch
