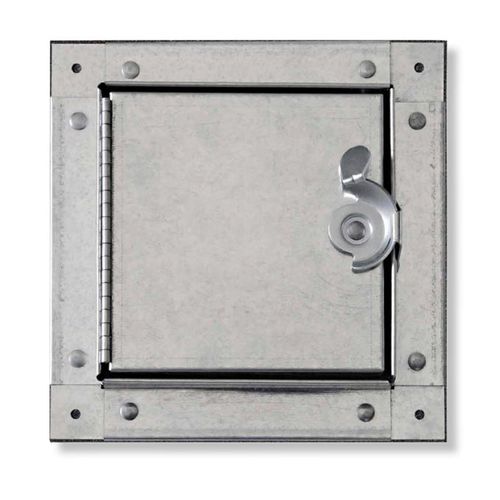

Wall hatch HDSS-6020
squaremetalfor home automation systems

wall hatch
wall hatch
Add to favorites
Compare this product


Characteristics

Applications
wall
Shape
square
Material
metal
Other characteristics
for home automation systems
Length

Min.: 150 mm
(6 in)

Max.: 610 mm
(24 in)

Width

Min.: 150 mm
(6 in)

Max.: 610 mm
(24 in)

Description

Application Provides easy access to sheet metal ducts Product Features Innovative self stick frame for easy installation Insulated door panel, single cam, hinged Tested to 10" SP with minimal leakage Options: ALUMINUM STAINLESS STEEL CYLINDER LOCK & KEY HASP + STAPLE L HANDLE HDSS-6020 Duct Access Door Specifications: Door: 24 gauge galvanized steel, double panel Frame: 24 gauge galvanized steel Hinge: Continuous aluminum piano hinge Insulation: Door panel filled with 1" fiberglass insulation Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame. 1/8” thick by 1/2” wide adhesive bonded gasket between frame to duct Latch: Self tightening, hand operated cam latches Hardware: Hex head sheet metal screws
