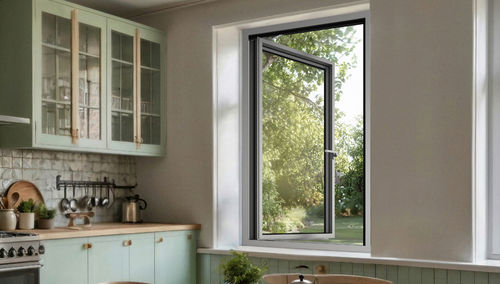

Casement window SMARTIA S85

glassaluminumdouble-glazed

<b>Overview</b><br>SMARTIA S85 is a minimal outward-opening hinged window system engineered for modern architecture. The design maximizes interior space with outward-opening sashes and offers flush internal and external profiles suited to contemporary façades.<br><br><b>Advantages</b><br><ul><li>Fully flush profiles internally and externally for clean design lines.</li><li>Minimal outward-opening sash with a 68 mm visible aluminium face to increase daylight ingress.</li><li>Two energy-efficient versions incorporating insulating NRG Bars to reduce thermal transmission and energy consumption.</li><li>Controlled ventilation options including the Night Vent Keep accessory for secure night-time ventilation.</li></ul><br><b>Generic</b><br>WINDOW TYPE: Hinged<br>THERMAL INSULATION: Yes<br>EXTERIOR SHAPE: Flat<br><br><b>Technical Characteristics</b><br>FRAME DEPTH: 85 mm<br>SASH DEPTH: 85 mm<br>MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 68 mm<br>GLAZING TYPE: Double - Triple<br>MAXIMUM GLAZING THICKNESS: 28 mm & 44 mm<br>SEALING METHOD: Sealing with EPDM gaskets<br><br><b>Performance</b><br>WATER TIGHTNESS: Class E750<br>AIR PERMEABILITY: Class 4<br>WIND LOAD RESISTANCE: Class C5/B5<br>BURGLAR RESISTANCE: PAS 24: 2022<br><br><b>Characteristics</b><br>THERMAL TRANSMITTANCE Uf from 1.5 W/(m²K)<br>SASH WEIGHT up to 50 kg<br><br><b>Typologies</b><br><ul><li>Double fixed lights</li><li>Single side-hung window</li><li>Single side-hung window with fixed side light</li><li>Single side-hung window with fixed side light and projected window</li><li>Fixed light with two single side-hung windows</li></ul><br><b>Specifications</b><br><ul><li>Model: SMARTIA S85</li><li>Brand: Alumil</li><li>Frame depth: 85 mm</li><li>Sash depth: 85 mm</li><li>Minimum visible aluminium face: 68 mm</li><li>Glazing: Double or Triple</li><li>Maximum glazing thickness: 28 mm & 44 mm</li><li>Sealing: EPDM gaskets</li><li>Thermal insulation: Yes (Uf from 1.5 W/(m²K))</li><li>Water tightness: Class E750</li><li>Air permeability: Class 4</li><li>Wind resistance: Class C5/B5</li><li>Burglar resistance: PAS 24: 2022</li><li>Sash weight: up to 50 kg</li></ul>
