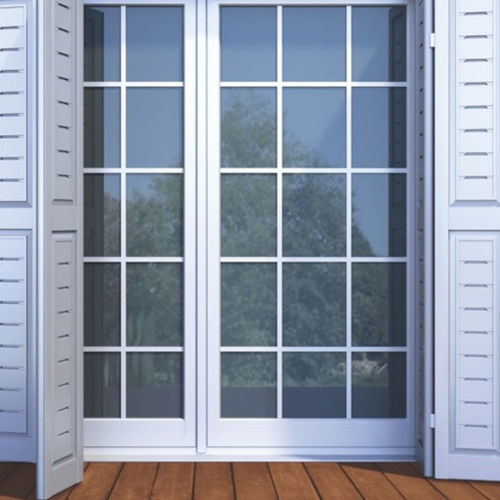

Swing French door SMARTIA M15000

tilt-and-turnaluminumdouble-glazed

Product description
SMARTIA M15000 is a tilt & turn (hinged) system designed for windows and doors, offering a wide range of aluminium profiles suitable for casements, French doors and entrance doors in non‑insulated applications.

Advantages

• Competitive cost-performance balance
• Enhanced security features
• High sound insulation performance
• Full functional range for tilt & turn operation
• Contemporary exterior lines
• Easy operation and reliable hardware function
• Certified performance and manufacturing quality
• Improved operational endurance under severe weather conditions

Certificates

• Cradle to Cradle Certified® (product-level certification)
• Aluminum TUV Austria OK Recycled

Generic
WINDOW TYPE: Hinged
THERMAL INSULATION: No
EXTERIOR SHAPE: Flat, Curved, Classic

Technical Characteristics
FRAME DEPTH: 50 mm
SASH DEPTH: 59 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 70 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 61 mm
GLAZING TYPE: Single - Double
MAXIMUM GLAZING THICKNESS: from 4 up to 47 mm
MECHANISM: Euro-groove, Euro-nut
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets

Performance
WATER TIGHTNESS: CLASS E1050
AIR PERMEABILITY: CLASS 4
BURGLAR RESISTANCE: RC2

Characteristics
SASH WEIGHT: up to 180 Kg
TYPES OF TYPOLOGY: For all tilt & turn typologies

Typologies

• Single sash tilt and turn
• Tilt and turn with fixed light on top
• Tilt and turn with fanlight
• Double tilt and turn window
• Double tilt and turn with fixed light
• Horizontal pivot window
• Vertical pivot window
• Double tilt and turn window with fixed light
• Double tilt and turn with fanlight
• Double tilt and turn with fixed lights sideways
• Single tilt & turn casement (concealed sash)
• Single tilt & turn casement with fixed light (concealed sash)
• Double tilt & turn window (alternative)
• Hinged door inwards/outwards
• Double leaf door inwards/outwards opening
• Hinged door inwards/outwards with insulation panel & fixed pane
• Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
• Double tilt and turn window with shutter

Technical specifications

• Frame depth: 50 mm
• Sash depth: 59 mm
• Minimum visible aluminium face height: 70 mm
• Minimum visible aluminium face width at central vertical column: 61 mm
• Glazing type: Single or Double
• Maximum glazing thickness: from 4 up to 47 mm
• Mechanism: Euro-groove, Euro-nut
• Sealing method: Perimetrical at 3 levels with EPDM gaskets
• Water tightness: CLASS E1050
• Air permeability: CLASS 4
• Burglar resistance: RC2
• Sash weight capacity: up to 180 Kg
