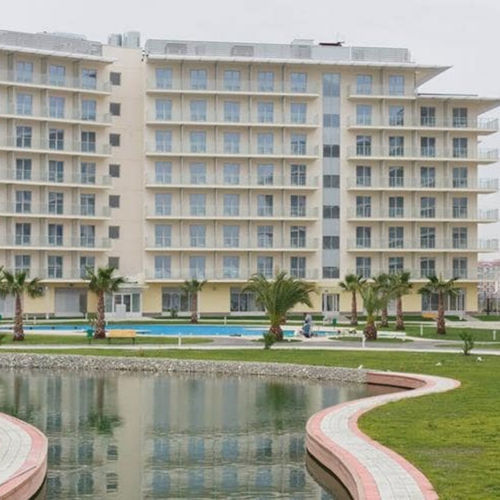

Aluminum sliding system COMFORT M900

windownon-insulatedhome

Product description
COMFORT M900 is a non‑insulated aluminium sliding system designed for cost‑effective installations on small to medium spans. It provides compact visible profiles and light sashes for architectural applications where thermal insulation is not required.

Advantages

• Low‑cost solution for budget‑sensitive projects
• Compact visible frame for slim sightlines
• Multiple configurations for different opening needs

Certificates

• Aluminum TUV Austria OK Recycled

Generic
WINDOW TYPE: Sliding
THERMAL INSULATION: No
EXTERIOR SHAPE: Curved

Technical Characteristics
SASH DEPTH: 28 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 81 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE): 67.8 mm
GLAZING TYPE: Single - Double
MAXIMUM GLAZING THICKNESS: from 3 mm up to 21 mm
MECHANISM: Sliding mechanism
SEALING METHOD: Perimetrical with hi‑fin gaskets

Characteristics
TYPES OF TYPOLOGY: Double and triple horizontal sliding sashes; Meeting stile (central mullion); Pocket typologies; Combined with fly‑screen and shutter
SASH WEIGHT: up to 80 Kg

Typologies / Available configurations

• Double horizontal sliding sash
• Triple horizontal sliding sash
• Double horizontal parallel sliding window with fly‑screen
• Single horizontal sash pocket window
• Single horizontal pocket with fly‑screen & shutter
• Double pocket horizontal sliding window with fly‑screen & shutter

Characteristics / Technical specifications

• Model: COMFORT M900
• Typology: non‑insulated sliding system
• Thermal insulation: No
• Sash depth: 28 mm
• Minimum visible aluminium face height: 81 mm
• Minimum visible aluminium face width at the central vertical column (interlocking profile): 67.8 mm
• Glazing type: Single or double
• Maximum glazing thickness: 3–21 mm
• Maximum sash weight: up to 80 Kg
• Mechanism: Sliding
• Sealing method: Perimetrical with hi‑fin gaskets
