Tilt-and-turn window COMFORT M940
casementaluminumdouble-glazed

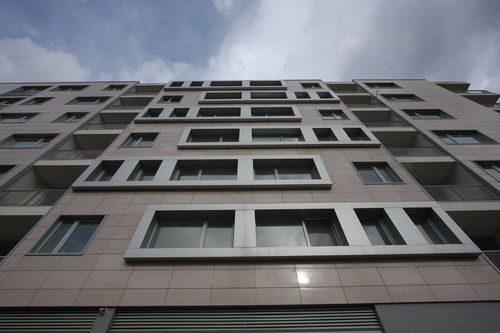

Tilt-and-turn window - COMFORT M940 - ALUMIL - casement / aluminum / double-glazed
Tilt-and-turn window - COMFORT M940 - ALUMIL - casement / aluminum / double-glazed
Tilt-and-turn window - COMFORT M940 - ALUMIL - casement / aluminum / double-glazed - image - 2
Tilt-and-turn window - COMFORT M940 - ALUMIL - casement / aluminum / double-glazed - image - 3
Tilt-and-turn window - COMFORT M940 - ALUMIL - casement / aluminum / double-glazed - image - 4
Add to favorites
Compare this product
Go to the ALUMIL website for more information

Characteristics

Opening system
casement, tilt-and-turn
Material
aluminum
Glazing
double-glazed
Number of leaves
double leaf, 1 leaf
Performance
acoustic
Shape
rectangular, curved
Technical characteristics
waterproof, air permeability
Ecological characteristics
sustainable, energy-saving, made from recycled materials, cradle-to-cradle
Other characteristics
residential, for commercial buildings

Description

Description
COMFORT M940 is an economical, lightweight non-insulated system designed for tilt & turn (hinged) windows and doors. It provides reliable basic performance and is available in multiple configurations suited to small and medium spans.

Advantages
  • Very good value for money
  • Economic solutions for small spans
  • Wide variety of typologies and configurations

Certificates
  • Cradle to Cradle Certified®
  • Aluminum TUV Austria OK Recycled

Generic
WINDOW TYPE: Hinged
THERMAL INSULATION: No
EXTERIOR SHAPE: Classic, Curved, Flat

Technical Characteristics
FRAME DEPTH: 37 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 81.7 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 131 mm
GLAZING TYPE: Single - Double
MAXIMUM GLAZING THICKNESS: from 4 mm up to 24 mm
MECHANISM: Euro-groove
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets

Performance
WATER TIGHTNESS: CLASS 8A
AIR PERMEABILITY: CLASS 4

Characteristics
SASH WEIGHT: up to 130 Kg
TYPES OF TYPOLOGY: For all tilt & turn typologies

Typologies
  • One sash tilt and turn
  • Tilt and turn with fixed top light
  • Tilt and turn with fanlight
  • Double tilt and turn window
  • Double tilt and turn with light
  • Double tilt and turn window with fixed light
  • Double tilt and turn window with shutter
  • Double horizontal parallel sliding window with fixed lights
  • Hinged inward entrance door with kick plate
  • Hinged outward entrance door with kick plate

Characteristics / Technical specifications
  • Window type: Hinged
  • Thermal insulation: No
  • Exterior shape: Classic, Curved, Flat
  • Frame depth: 37 mm
  • Minimum visible aluminium face height: 81.7 mm
  • Minimum visible aluminium face width at the central vertical column (adjoining profile): 131 mm
  • Glazing type: Single - Double
  • Maximum glazing thickness: from 4 mm up to 24 mm
  • Mechanism: Euro-groove
  • Sealing method: Perimetrical at 3 levels with EPDM gaskets
  • Water tightness: CLASS 8A
  • Air permeability: CLASS 4
  • Sash weight: up to 130 Kg
  • Suitable for all tilt & turn typologies

Catalogs

No catalogs are available for this product.

See all of ALUMIL‘s catalogs
Go to the ALUMIL website for more information
